Streamfab Netflix Dolby Vision Question ?

Mobe1969

I'm just wondering, is the new Netflix Dolby Vision download HDR10 backwards compatible? It is just the metadata isn't showing this.

Eg Streamfab Netflix:
HDR format : Dolby Vision, Version 1.0, dvhe.05.03, BL+RPU

A UHD:
HDR format : Dolby Vision, Version 1.0, dvhe.07.06, BL+EL+RPU, Blu-ray compatible / SMPTE ST 2086, HDR10 compatible

Mona

We download what is available for download on the site, we don't change it.

MrGrackle

We download what is available for download on the site, we don't change it.
Mona

Is HDR10 also embedded in the same stream or does Netflix send out only one or the other, depending on playback capability?

jpp72

Streaming sites are different than physical media in what they need to provide the user.

Buying a UHD Blu-ray, it needs to work with the majority of hardware. That is why you have a movie where the video is Dolby Vision and HDR10 compatible.

For Netflix (and probably other streamers), it seems they made the decision to have 2 separate files where one is HDR10 and the other is Dolby Vision. They serve you what is compatible with your hardware. It's very easy for them to do this with DASH streams.

Mobe1969

Yeah I tested one - the Dolby Vision ones play DV on my DV TV, but fall back to SDR 709 on my projector via an oppo.

It is a shame they aren't compatible. It means I need to selectively keep ones depending on what I'm going to watch on. I might just stick with HDR10, just for simplicity.

MrGrackle

Slightly off topic, but are there any easy to use players on PC that will do tone mapping?
HDR10 is done by VLC just fine.
I was reading that Jelly Fin and FFMPEG 6 do it, but in poking around, I am seriously confused as to how or what do to. I can't even find what I need to download for Jellyfin.

For TV though, can I assume that an Nvidia Shield Pro with Kodi will handle what I need?

jpp72

I was just about to suggest Kodi for Windows. That is exclusively what i use for all my Windows HTPCs, NVidia Shields and Chromecast w/Google TV

Any reason you use it on Android but not Windows?

Per K

I have completely dropped all these types of media players and instead i purchased a Mini PC from Zotac with Windows 11 Pro pre-installed.
Installed K-lite Mega Codec Pack on it and have not looked back since.
Best choice i ever have done, because it works one heck of a lot smoother than any of these media players out there.

Then the bonus is even that you can hook up an external BD drive to it and then you can also get rid of your Blu-ray player if you want to, a plan i also look in to in the future, so that i can drop that rather handicapped Sony player of mine.

Mobe1969

I have completely dropped all these types of media players and instead i purchased a Mini PC from Zotac with Windows 11 Pro pre-installed.
Installed K-lite Mega Codec Pack on it and have not looked back since.
Best choice i ever have done, because it works one heck of a lot smoother than any of these media players out there.

Then the bonus is even that you can hook up an external BD drive to it and then you can also get rid of your Blu-ray player if you want to, a plan i also look in to in the future, so that i can drop that rather handicapped Sony player of mine.
Per K

Interesting. So what media player do you use on Windows 11? And it can play Blu-Rays and UHDs from the drive, you don't need to rip first? That'd be great. Is region codes an issue with that?

MrGrackle

I was just about to suggest Kodi for Windows. That is exclusively what i use for all my Windows HTPCs, NVidia Shields and Chromecast w/Google TV

Any reason you use it on Android but not Windows?
jpp72

Kodi does not do tone mapping on SDR displays, which is what I am inquiring about.
On Windows I consider it a bit bloated/clunky. Before downloading HDR content my choice of Windows players was always MPC.

Per K

Interesting. So what media player do you use on Windows 11? And it can play Blu-Rays and UHDs from the drive, you don't need to rip first? That'd be great. Is region codes an issue with that?
Mobe1969

Currently i just use MPC-HC, which comes with the K-Lite package where LAV Fillters together with LAV Splitter handles everything regarding rendering.
The people behind LAV Filters have also designed a special video splitter for MPC-HC.

The future plan for Blu-ray playback is to use Cyberlink PowerDVD Ultra 22, which should be no problems at least for me, since all my Blu-rays have the same region.
Or else there always exists AnyDVD to handle shifting region codings.

jpp72

Kodi does not do tone mapping on SDR displays, which is what I am inquiring about.
On Windows I consider it a bit bloated/clunky. Before downloading HDR content my choice of Windows players was always MPC.
MrKrawk

What makes you say that? It absolutely does tone mapping on SDR displays.

I just tried it on 2 different SDR displays and 2 HDR displays and the colors are the same. Only difference is the color of the subtitles is darker on the SDR display but it may very well be a setting or something...

As for the Windows clunkyness, what do you mean? The interface and settings are exactly the same on all platforms...If you find it clunky on windows, i don't see why you wouldn't find it clunky on Android...

MrGrackle

What makes you say that? It absolutely does tone mapping on SDR displays.

I just tried it on 2 different SDR displays and 2 HDR displays and the colors are the same. Only difference is the color of the subtitles is darker on the SDR display but it may very well be a setting or something...

As for the Windows clunkyness, what do you mean? The interface and settings are exactly the same on all platforms...If you find it clunky on windows, i don't see why you wouldn't find it clunky on Android...
jpp72

HDR tone mapping, yes, DV, NO. The Netflix logo that should be red is kind of a pink/purple color. Obviously the rest of the video is bad too.

jpp72

My Sonarr automatically downloaded Fubar and added it to Plex and Kodi before i was able to download it with StreamFab.

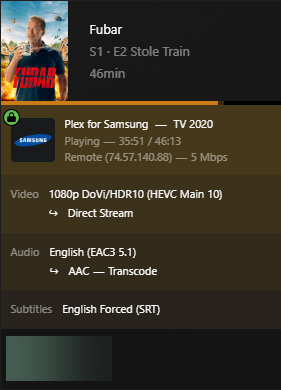

Just now, i noticed my cousin was watching it and i saw this:

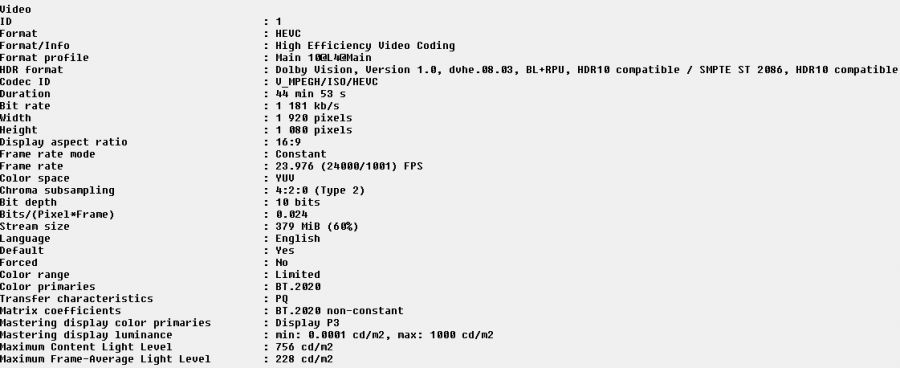

So i inspected the file in Mediainfo and got this:

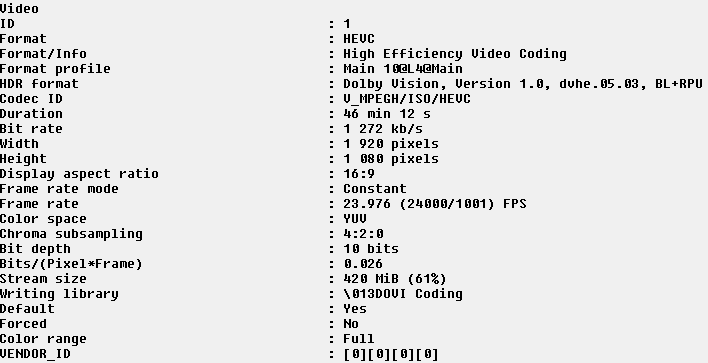

The one from StreamFab shows this:

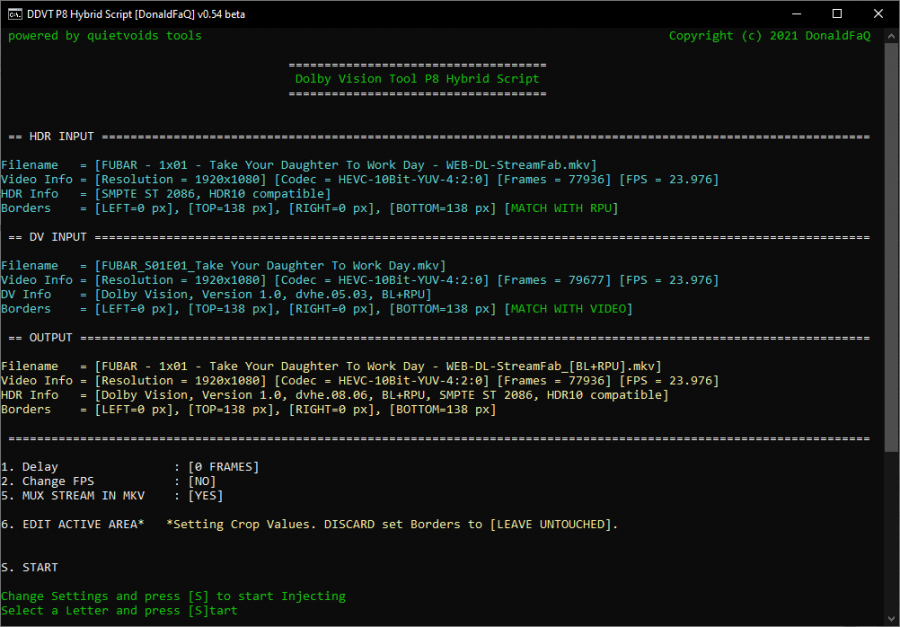

I did a quick Google search and i discovered a tool called DDVT Tool: Dolby Vision RPU Demuxing / Injecting / Editing on the Doom9 forums.

It contains a tool that will take a DoVi only file and HDR10 only file and generate a Hybrid DoVi/HDR10 file.

So i just tried it and it works. It plays fine on my HDR10+ Samsung TV and on my brother's LG C9 TV.

This means that if you want to have a universal file, you can create it yourself by downloading both versions in StreamFab and using DDVT Tool.

There are a bunch of other options in DDVT that i don't know what they do besides convert between the 2 formats so i suggest you download it and play around with it.

Creating the hybrid file took less than 2 minutes btw...

Mobe1969

My Sonarr automatically downloaded Fubar and added it to Plex and Kodi before i was able to download it with StreamFab.

Just now, i noticed my cousin was watching it and i saw this:

So i inspected the file in Mediainfo and got this:

The one from StreamFab shows this:

I did a quick Google search and i discovered a tool called DDVT Tool: Dolby Vision RPU Demuxing / Injecting / Editing on the Doom9 forums.

It contains a tool that will take a DoVi only file and HDR10 only file and generate a Hybrid DoVi/HDR10 file.

So i just tried it and it works. It plays fine on my HDR10+ Samsung TV and on my brother's LG C9 TV.

This means that if you want to have a universal file, you can create it yourself by downloading both versions in StreamFab and using DDVT Tool.

There are a bunch of other options in DDVT that i don't know what they do besides convert between the 2 formats so i suggest you download it and play around with it.

Creating the hybrid file took less than 2 minutes btw...
jpp72

That is an interesting idea using a tool to merge. I may give that a go. What was the size like?

jpp72

That is an interesting idea using a tool to merge. I may give that a go. What was the size like?

Mobe1969

Fubar Episode 1 HDR10: 827 MB
Fubar Episode 1 DoVi: 942 MB
Fubar Episode 1 DoVi/HDR10 Hybrid: 841 MB

Both were downloaded with the highest bitrate available for the profile.

HDR10: 1347 kbps Video Bitrate
DoVi: 1634 kbps Video Bitrate

DVDalibaba

Fubar Episode 1 HDR10: 827 MB
Fubar Episode 1 DoVi: 942 MB
Fubar Episode 1 DoVi/HDR10 Hybrid: 841 MB

Both were downloaded with the highest bitrate available for the profile.

HDR10: 1347 kbps Video Bitrate
DoVi: 1634 kbps Video Bitrate
jpp72

can you guide me to choose to combine hdr and DV into one file? I am needing it. thank you pro

MrGrackle

As for the Windows clunkyness, what do you mean? The interface and settings are exactly the same on all platforms...If you find it clunky on windows, i don't see why you wouldn't find it clunky on Android...
jpp72

Playing user created media on Shield there are not a lot of choices out there for file type support. Plex seems to require recode for just about everything, Kodi just plays it.
