Command Line control?

[AnttDvdFab]

Hello - I used the command line to automate mass conversions using DVDFab command line processing, but have not been able to find documentation on how to do this with UniFab.

Is that supported? I have to keep both DVDFab 12 and 13 installed and up to date because the converter option was removed.

[knighter]

Please check the detail in attachment.

[adowEm]

Please check the detail in attachment.

I'm unable to view this file for some reason. Can you please post it again or send it to me somehow?

[knighter]

Among the millions of UniFab users worldwide, there are quite a lot high-end users with solid knowledge on audio and video conversion, codecs, some of them are even of geek level. For that part of experienced users, UniFab offers them the freedom to freely customize the H.264 and H.265 specifications in Video Converter modules, so that they can make their unique conversions to meet their special demands. Check out below to see how to do that:

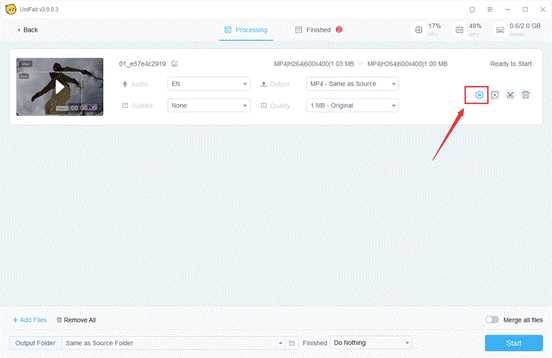

Step 1 — Open the Advanced Settings panel of the Video Converter module.

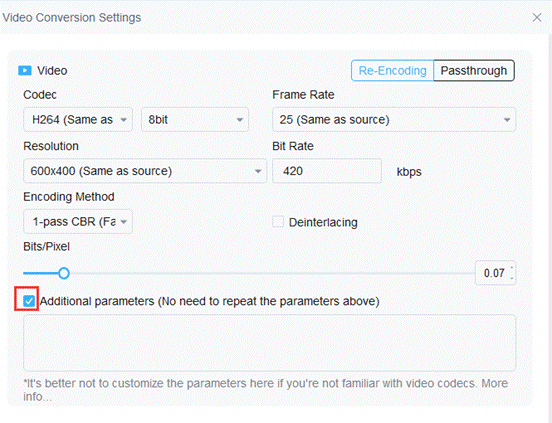

Step 2 — At the Additional Parameters section, enter your detailed specifications. Be noted there is no need to repeat the specifications already set at the upper part of this window.


However, to those who’re not very familiar with audio and video conversion, it is not recommended to customize those specs mentioned above.
Supported H264 Command Line Parameters:
x264 core:161 r3018 db0d417
Syntax: x264 [options] -o outfile infile
Infile can be raw (in which case resolution is required),
or YUV4MPEG (.y4m),
or Avisynth if compiled with support (yes).
* or libav* formats if compiled with lavf support (yes) or ffms support (no).
Outfile type is selected by filename:
.264 -> Raw bytestream
.mkv -> Matroska
.flv -> Flash Video
.mp4 -> MP4 if compiled with GPAC or L-SMASH support (lsmash)
Output bit depth: 8/10
.
Options:
-h, --help List basic options
--longhelp List more options
--fullhelp List all options
Example usage:
Constant quality mode:
x264 --crf 24 -o
Two-pass with a bitrate of 1000kbps:
x264 --pass 1 --bitrate 1000 -o
x264 --pass 2 --bitrate 1000 -o
Lossless:
x264 --qp 0 -o
Maximum PSNR at the cost of speed and visual quality:
x264 --preset placebo --tune psnr -o
Constant bitrate at 1000kbps with a 2 second-buffer:
x264 --vbv-bufsize 2000 --bitrate 1000 -o
Presets:
--profile Force the limits of an H.264 profile
Overrides all settings.
- baseline:
--no-8x8dct --bframes 0 --no-cabac
--cqm flat --weightp 0
No interlaced.
No lossless.
- main:
--no-8x8dct --cqm flat
No lossless.
- high:
No lossless.
- high10:
No lossless.
Support for bit depth 8-10.
- high422:
No lossless.
Support for bit depth 8-10.
Support for 4:2:0/4:2:2 chroma subsampling.
- high444:
Support for bit depth 8-10.
Support for 4:2:0/4:2:2/4:4:4 chroma subsampling.
--preset Use a preset to select encoding settings [medium]
Overridden by user settings.
- ultrafast:
--no-8x8dct --aq-mode 0 --b-adapt 0
--bframes 0 --no-cabac --no-deblock
--no-mbtree --me dia --no-mixed-refs
--partitions none --rc-lookahead 0 --ref 1
--scenecut 0 --subme 0 --trellis 0
--no-weightb --weightp 0
- superfast:
--no-mbtree --me dia --no-mixed-refs
--partitions i8x8,i4x4 --rc-lookahead 0
--ref 1 --subme 1 --trellis 0 --weightp 1
- veryfast:
--no-mixed-refs --rc-lookahead 10
--ref 1 --subme 2 --trellis 0 --weightp 1
- faster:
--no-mixed-refs --rc-lookahead 20
--ref 2 --subme 4 --weightp 1
- fast:
--rc-lookahead 30 --ref 2 --subme 6
--weightp 1
- medium:
Default settings apply.
- slow:
--direct auto --rc-lookahead 50 --ref 5
--subme 8 --trellis 2
- slower:
--b-adapt 2 --direct auto --me umh
--partitions all --rc-lookahead 60
--ref 8 --subme 9 --trellis 2
- veryslow:
--b-adapt 2 --bframes 8 --direct auto
--me umh --merange 24 --partitions all
--ref 16 --subme 10 --trellis 2
--rc-lookahead 60
- placebo:
--bframes 16 --b-adapt 2 --direct auto
--slow-firstpass --no-fast-pskip
--me tesa --merange 24 --partitions all
--rc-lookahead 60 --ref 16 --subme 11
--trellis 2
--tune Tune the settings for a particular type of source
or situation
Overridden by user settings.
Multiple tunings are separated by commas.
Only one psy tuning can be used at a time.
- film (psy tuning):
--deblock -1:-1 --psy-rd :0.15
- animation (psy tuning):
--bframes {+2} --deblock 1:1
--psy-rd 0.4: --aq-strength 0.6
--ref {Double if >1 else 1}
- grain (psy tuning):
--aq-strength 0.5 --no-dct-decimate
--deadzone-inter 6 --deadzone-intra 6
--deblock -2:-2 --ipratio 1.1
--pbratio 1.1 --psy-rd :0.25
--qcomp 0.8
- stillimage (psy tuning):
--aq-strength 1.2 --deblock -3:-3
--psy-rd 2.0:0.7
- psnr (psy tuning):
--aq-mode 0 --no-psy
- ssim (psy tuning):
--aq-mode 2 --no-psy
- fastdecode:
--no-cabac --no-deblock --no-weightb
--weightp 0
- zerolatency:
--bframes 0 --force-cfr --no-mbtree
--sync-lookahead 0 --sliced-threads
--rc-lookahead 0
--slow-firstpass Don't force these faster settings with --pass 1:
--no-8x8dct --me dia --partitions none
--ref 1 --subme {2 if >2 else unchanged}
--trellis 0 --fast-pskip
Frame-type options:
-I, --keyint Maximum GOP size [250]
-i, --min-keyint Minimum GOP size [auto]
--no-scenecut Disable adaptive I-frame decision
--scenecut How aggressively to insert extra I-frames [40]
--intra-refresh Use Periodic Intra Refresh instead of IDR frames
-b, --bframes Number of B-frames between I and P [3]
--b-adapt Adaptive B-frame decision method [1]
Higher values may lower threading efficiency.
- 0: Disabled
- 1: Fast
- 2: Optimal (slow with high --bframes)
--b-bias Influences how often B-frames are used [0]
--b-pyramid Keep some B-frames as references [normal]
- none: Disabled
- strict: Strictly hierarchical pyramid
- normal: Non-strict (not Blu-ray compatible)
--open-gop Use recovery points to close GOPs
Only available with b-frames
--no-cabac Disable CABAC
-r, --ref Number of reference frames [3]
--no-deblock Disable loop filter
-f, --deblock Loop filter parameters [0:0]
--slices Number of slices per frame; forces rectangular
slices and is overridden by other slicing options
--slices-max Absolute maximum slices per frame; overrides
slice-max-size/slice-max-mbs when necessary
--slice-max-size Limit the size of each slice in bytes
--slice-max-mbs Limit the size of each slice in macroblocks (max)
--slice-min-mbs Limit the size of each slice in macroblocks (min)
--tff Enable interlaced mode (top field first)
--bff Enable interlaced mode (bottom field first)
--constrained-intra Enable constrained intra prediction.
--pulldown Use soft pulldown to change frame rate
- none, 22, 32, 64, double, triple, euro (requires cfr input)
--fake-interlaced Flag stream as interlaced but encode progressive.
Makes it possible to encode 25p and 30p Blu-Ray
streams. Ignored in interlaced mode.
--frame-packing For stereoscopic videos define frame arrangement
- 0: checkerboard - pixels are alternatively from L and R
- 1: column alternation - L and R are interlaced by column
- 2: row alternation - L and R are interlaced by row
- 3: side by side - L is on the left, R on the right
- 4: top bottom - L is on top, R on bottom
- 5: frame alternation - one view per frame
- 6: mono - 2D frame without any frame packing
- 7: tile format - L is on top-left, R split across
Ratecontrol:
-q, --qp Force constant QP (0-81, 0=lossless)
-B, --bitrate Set bitrate (kbit/s)
--crf Quality-based VBR (-12-51) [23.0]
--rc-lookahead Number of frames for frametype lookahead [40]
--vbv-maxrate Max local bitrate (kbit/s) [0]
--vbv-bufsize Set size of the VBV buffer (kbit) [0]
--vbv-init Initial VBV buffer occupancy [0.9]
--crf-max With CRF+VBV, limit RF to this value
May cause VBV underflows!
--qpmin Set min QP [0]
--qpmax Set max QP [81]
--qpstep Set max QP step [4]
--ratetol Tolerance of ABR ratecontrol and VBV [1.0]
--ipratio QP factor between I and P [1.40]
--pbratio QP factor between P and B [1.30]
--chroma-qp-offset QP difference between chroma and luma [0]
--aq-mode AQ method [1]
- 0: Disabled
- 1: Variance AQ (complexity mask)
- 2: Auto-variance AQ
- 3: Auto-variance AQ with bias to dark scenes
--aq-strength Reduces blocking and blurring in flat and
textured areas. [1.0]
-p, --pass Enable multipass ratecontrol
- 1: First pass, creates stats file
- 2: Last pass, does not overwrite stats file
- 3: Nth pass, overwrites stats file
--stats Filename for 2 pass stats ["x264_2pass.log"]
--no-mbtree Disable mb-tree ratecontrol.
--qcomp QP curve compression [0.60]
--cplxblur Reduce fluctuations in QP (before curve compression) [20.0]
--qblur Reduce fluctuations in QP (after curve compression) [0.5]
--zones //... Tweak the bitrate of regions of the video
Each zone is of the form
,,
whereis either
q= (force QP)
or b= (bitrate multiplier)
--qpfile Force frametypes and QPs for some or all frames
Format of each line: framenumber frametype QP
QP is optional (none lets x264 choose). Frametypes: I,i,K,P,B,b.
K= depending on open-gop setting
QPs are restricted by qpmin/qpmax.
Analysis:
-A, --partitions Partitions to consider ["p8x8,b8x8,i8x8,i4x4"]
- p8x8, p4x4, b8x8, i8x8, i4x4, none, all
(p4x4 requires p8x8. i8x8 requires --8x8dct.)
--direct Direct MV prediction mode ["spatial"]
- none, spatial, temporal, auto
--no-weightb Disable weighted prediction for B-frames
--weightp Weighted prediction for P-frames [2]
- 0: Disabled
- 1: Weighted refs
- 2: Weighted refs + Duplicates
--me Integer pixel motion estimation method ["hex"]
- dia: diamond search, radius 1 (fast)
- hex: hexagonal search, radius 2
- umh: uneven multi-hexagon search
- esa: exhaustive search
- tesa: hadamard exhaustive search (slow)
--merange Maximum motion vector search range [16]
--mvrange Maximum motion vector length [-1 (auto)]
--mvrange-thread Minimum buffer between threads [-1 (auto)]
-m, --subme Subpixel motion estimation and mode decision [7]
- 0: fullpel only (not recommended)
- 1: SAD mode decision, one qpel iteration
- 2: SATD mode decision
- 3-5: Progressively more qpel
- 6: RD mode decision for I/P-frames
- 7: RD mode decision for all frames
- 8: RD refinement for I/P-frames
- 9: RD refinement for all frames
- 10: QP-RD - requires trellis=2, aq-mode>0
- 11: Full RD: disable all early terminations
--psy-rd Strength of psychovisual optimization ["1.0:0.0"]
#1: RD (requires subme>=6)
#2: Trellis (requires trellis, experimental)
--no-psy Disable all visual optimizations that worsen
both PSNR and SSIM.
--no-mixed-refs Don't decide references on a per partition basis
--no-chroma-me Ignore chroma in motion estimation
--no-8x8dct Disable adaptive spatial transform size
-t, --trellis Trellis RD quantization. [1]
- 0: disabled
- 1: enabled only on the final encode of a MB
- 2: enabled on all mode decisions
--no-fast-pskip Disables early SKIP detection on P-frames
--no-dct-decimate Disables coefficient thresholding on P-frames
--nr Noise reduction [0]
--deadzone-inter Set the size of the inter luma quantization deadzone [21]
--deadzone-intra Set the size of the intra luma quantization deadzone [11]
Deadzones should be in the range 0 - 32.
--cqm Preset quant matrices ["flat"]
- flat, jvt
--cqmfile Read custom quant matrices from a JM-compatible file
Overrides any other --cqm* options.
--cqm4 Set all 4x4 quant matrices
Takes a comma-separated list of 16 integers.
--cqm8 Set all 8x8 quant matrices
Takes a comma-separated list of 64 integers.
--cqm4i, --cqm4p, --cqm8i, --cqm8p
Set both luma and chroma quant matrices
--cqm4iy, --cqm4ic, --cqm4py, --cqm4pc
Set individual quant matrices
Video Usability Info (Annex E):
The VUI settings are not used by the encoder but are merely suggestions to
the playback equipment. See doc/vui.txt for details. Use at your own risk.
--overscan Specify crop overscan setting ["undef"]
- undef, show, crop
--videoformat Specify video format ["undef"]
- component, pal, ntsc, secam, mac, undef
--range Specify color range ["auto"]
- auto, tv, pc
--colorprim Specify color primaries ["undef"]
- undef, bt709, bt470m, bt470bg, smpte170m,
smpte240m, film, bt2020, smpte428,
smpte431, smpte432
--transfer Specify transfer characteristics ["undef"]
- undef, bt709, bt470m, bt470bg, smpte170m,
smpte240m, linear, log100, log316,
iec61966-2-4, bt1361e, iec61966-2-1,
bt2020-10, bt2020-12, smpte2084, smpte428,
arib-std-b67
--colormatrix Specify color matrix setting ["???"]
- undef, bt709, fcc, bt470bg, smpte170m,
smpte240m, GBR, YCgCo, bt2020nc, bt2020c,
smpte2085, chroma-derived-nc,
chroma-derived-c, ICtCp
--chromaloc Specify chroma sample location (0 to 5) [0]
--alternative-transfer Specify an alternative transfer
characteristics ["undef"]
- same values as --transfer
--nal-hrd Signal HRD information (requires vbv-bufsize)
- none, vbr, cbr (cbr not allowed in .mp4)
--filler Force hard-CBR and generate filler (implied by
--nal-hrd cbr)
--pic-struct Force pic_struct in Picture Timing SEI
--crop-rect Add 'left,top,right,bottom' to the bitstream-level
cropping rectangle
Input/Output:
-o, --output Specify output file
--muxer Specify output container format ["auto"]
- auto, raw, mkv, flv, mp4
--demuxer Specify input container format ["auto"]
- auto, raw, y4m, avs, lavf
--input-fmt Specify input file format (requires lavf support)
--input-csp Specify input colorspace format for raw input
- valid csps for raw' demuxer: i400, i420, yv12, nv12, nv21, i422, yv16, nv16, yuyv, uyvy, i444, yv24, bgr, bgra, rgb - valid csps for lavf' demuxer:
yuv420p, yuyv422, rgb24, bgr24, yuv422p,
yuv444p, yuv410p, yuv411p, gray, monow, monob,
pal8, yuvj420p, yuvj422p, yuvj444p, uyvy422,
uyyvyy411, bgr8, bgr4, bgr4_byte, rgb8, rgb4,
rgb4_byte, nv12, nv21, argb, rgba, abgr, bgra,
gray16be, gray16le, yuv440p, yuvj440p,
yuva420p, rgb48be, rgb48le, rgb565be, rgb565le,
rgb555be, rgb555le, bgr565be, bgr565le,
bgr555be, bgr555le, vaapi_moco, vaapi_idct,
vaapi_vld, yuv420p16le, yuv420p16be,
yuv422p16le, yuv422p16be, yuv444p16le,
yuv444p16be, dxva2_vld, rgb444le, rgb444be,
bgr444le, bgr444be, ya8, bgr48be, bgr48le,
yuv420p9be, yuv420p9le, yuv420p10be,
yuv420p10le, yuv422p10be, yuv422p10le,
yuv444p9be, yuv444p9le, yuv444p10be,
yuv444p10le, yuv422p9be, yuv422p9le, gbrp,
gbrp9be, gbrp9le, gbrp10be, gbrp10le, gbrp16be,
gbrp16le, yuva422p, yuva444p, yuva420p9be,
yuva420p9le, yuva422p9be, yuva422p9le,
yuva444p9be, yuva444p9le, yuva420p10be,
yuva420p10le, yuva422p10be, yuva422p10le,
yuva444p10be, yuva444p10le, yuva420p16be,
yuva420p16le, yuva422p16be, yuva422p16le,
yuva444p16be, yuva444p16le, vdpau, xyz12le,
xyz12be, nv16, nv20le, nv20be, rgba64be,
rgba64le, bgra64be, bgra64le, yvyu422, ya16be,
ya16le, gbrap, gbrap16be, gbrap16le, qsv, mmal,
d3d11va_vld, cuda, 0rgb, rgb0, 0bgr, bgr0,
yuv420p12be, yuv420p12le, yuv420p14be,
yuv420p14le, yuv422p12be, yuv422p12le,
yuv422p14be, yuv422p14le, yuv444p12be,
yuv444p12le, yuv444p14be, yuv444p14le,
gbrp12be, gbrp12le, gbrp14be, gbrp14le,
yuvj411p, bayer_bggr8, bayer_rggb8,
bayer_gbrg8, bayer_grbg8, bayer_bggr16le,
bayer_bggr16be, bayer_rggb16le, bayer_rggb16be,
bayer_gbrg16le, bayer_gbrg16be, bayer_grbg16le,
bayer_grbg16be, xvmc, yuv440p10le, yuv440p10be,
yuv440p12le, yuv440p12be, ayuv64le, ayuv64be,
videotoolbox_vld, p010le, p010be, gbrap12be,
gbrap12le, gbrap10be, gbrap10le, mediacodec,
gray12be, gray12le, gray10be, gray10le, p016le,
p016be, d3d11, gray9be, gray9le, gbrpf32be,
gbrpf32le, gbrapf32be, gbrapf32le, drm_prime,
opencl, gray14be, gray14le, grayf32be,
grayf32le, yuva422p12be, yuva422p12le,
yuva444p12be, yuva444p12le, nv24, nv42
--output-csp Specify output colorspace ["i420"]
- i400, i420, i422, i444, rgb
--input-depth Specify input bit depth for raw input
--output-depth Specify output bit depth
--input-range Specify input color range ["auto"]
- auto, tv, pc
--input-res Specify input resolution (width x height)
--index Filename for input index file
--sar width:height Specify Sample Aspect Ratio
--fps Specify framerate
--seek First frame to encode
--frames Maximum number of frames to encode
--level Specify level (as defined by Annex A)
--bluray-compat Enable compatibility hacks for Blu-ray support
--avcintra-class Use compatibility hacks for AVC-Intra class
- 50, 100, 200
--avcintra-flavor AVC-Intra flavor ["panasonic"]
- panasonic, sony
--stitchable Don't optimize headers based on video content
Ensures ability to recombine a segmented encode
-v, --verbose Print stats for each frame
--no-progress Don't show the progress indicator while encoding
--quiet Quiet Mode
--log-level Specify the maximum level of logging ["info"]
- none, error, warning, info, debug
--psnr Enable PSNR computation
--ssim Enable SSIM computation
--threads Force a specific number of threads
--lookahead-threads Force a specific number of lookahead threads
--sliced-threads Low-latency but lower-efficiency threading
--thread-input Run Avisynth in its own thread
--sync-lookahead Number of buffer frames for threaded lookahead
--non-deterministic Slightly improve quality of SMP, at the cost of repeatability
--cpu-independent Ensure exact reproducibility across different cpus,
as opposed to letting them select different algorithms
--asm Override CPU detection
--no-asm Disable all CPU optimizations
--opencl Enable use of OpenCL
--opencl-clbin Specify path of compiled OpenCL kernel cache
--opencl-device Specify OpenCL device ordinal
--dump-yuv Save reconstructed frames
--sps-id Set SPS and PPS id numbers [0]
--aud Use access unit delimiters
--force-cfr Force constant framerate timestamp generation
--tcfile-in Force timestamp generation with timecode file
--tcfile-out Output timecode v2 file from input timestamps
--timebase Specify timebase numerator and denominator
Specify timebase numerator for input timecode file
or specify timebase denominator for other input
--dts-compress Eliminate initial delay with container DTS hack
Filtering:
--vf, --video-filter //... Apply video filtering to the input file
Filter options may be specified in := format.
Available filters:
crop:left,top,right,bottom
removes pixels from the edges of the frame
resize:[width,height][,sar][,fittobox][,csp][,method]
resizes frames based on the given criteria:
- resolution only: resizes and adapts sar to avoid stretching
- sar only: sets the sar and resizes to avoid stretching
- resolution and sar: resizes to given resolution and sets the sar
- fittobox: resizes the video based on the desired constraints
- width, height, both
- fittobox and sar: same as above except with specified sar
- csp: convert to the given csp. syntax: [name][:depth]
- valid csp names [keep current]: i400, i420, yv12, nv12, nv21, i422, yv16, nv16, yuyv, uyvy, i444, yv24, bgr, bgra, rgb
- depth: 8 or 16 bits per pixel [keep current]
note: not all depths are supported by all csps.
- method: use resizer method ["bicubic"]
- fastbilinear, bilinear, bicubic, experimental, point,
- area, bicublin, gauss, sinc, lanczos, spline
select_every:step,offset1[,...]
apply a selection pattern to input frames
step: the number of frames in the pattern
offsets: the offset into the step to select a frame
see: http://avisynth.nl/index.php/Select#SelectEvery

Supported H265 Command Line Parameters:

Syntax: x265 [options] infile [-o] outfile
infile can be YUV or Y4M
outfile is raw HEVC bitstream
Executable Options:
-h/--help Show this help text and exit
-V/--version Show version info and exit
Output Options:
-o/--output Bitstream output file name
-D/--output-depth 8|10|12 Output bit depth (also internal bit depth). Default 8
--log-level Logging level: none error warning info debug full. Default full
--no-progress Disable CLI progress reports
--csv Comma separated log file, if csv-log-level > 0 frame level statistics, else one line per run
--csv-log-level Level of csv logging, if csv-log-level > 0 frame level statistics, else one line per run: 0-2
Input Options:
--input Raw YUV or Y4M input file name. - for stdin
--y4m Force parsing of input stream as YUV4MPEG2 regardless of file extension
--fps Source frame rate (float or num/denom), auto-detected if Y4M
--input-res WxH Source picture size [w x h], auto-detected if Y4M
--input-depth Bit-depth of input file. Default 8
--input-csp Chroma subsampling, auto-detected if Y4M
0 - i400 (4:0:0 monochrome)
1 - i420 (4:2:0 default)
2 - i422 (4:2:2)
3 - i444 (4:4:4)
-f/--frames Maximum number of frames to encode. Default all
--seek First frame to encode
--[no-]interlace Indicate input pictures are interlace fields in temporal order. Default progressive
--dither Enable dither if downscaling to 8 bit pixels. Default disabled
Quality reporting metrics:
--[no-]ssim Enable reporting SSIM metric scores. Default disabled
--[no-]psnr Enable reporting PSNR metric scores. Default disabled
Profile, Level, Tier:
-P/--profile Enforce an encode profile: main, main10, mainstillpicture
--level-idc Force a minimum required decoder level (as '5.0' or '50')
--[no-]high-tier If a decoder level is specified, this modifier selects High tier of that level
--uhd-bd Enable UHD Bluray compatibility support
--[no-]allow-non-conformance Allow the encoder to generate profile NONE bitstreams. Default disabled
Threading, performance:
--pools Comma separated thread count per thread pool (pool per NUMA node)
'-' implies no threads on node, '+' implies one thread per core on node
-F/--frame-threads Number of concurrently encoded frames. 0: auto-determined by core count
--[no-]wpp Enable Wavefront Parallel Processing. Default enabled
--[no-]slices Enable Multiple Slices feature. Default 1
--[no-]pmode Parallel mode analysis. Default disabled
--[no-]pme Parallel motion estimation. Default disabled
--[no-]asm Override CPU detection. Default: auto
Presets:
-p/--preset &nb
