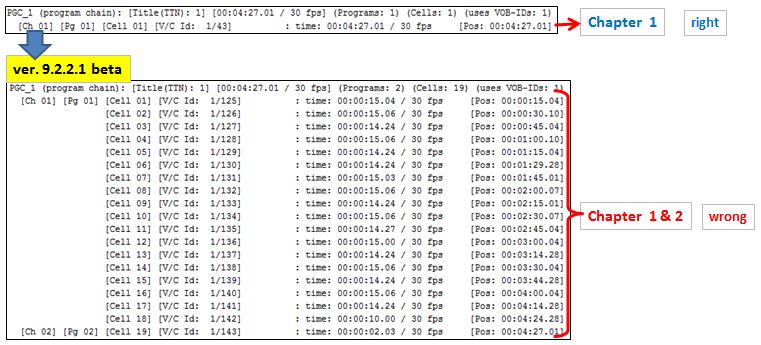

  • Show

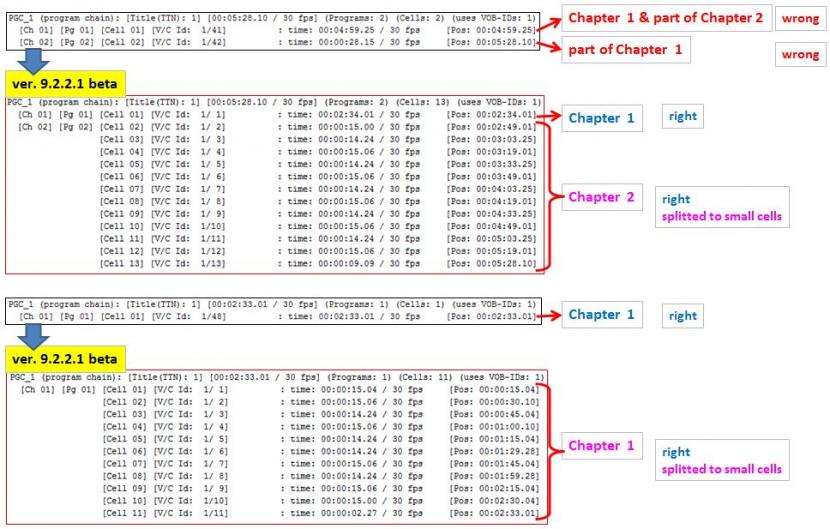

Clear All
new posts

    BD to DVD Chapter points change to mis-match

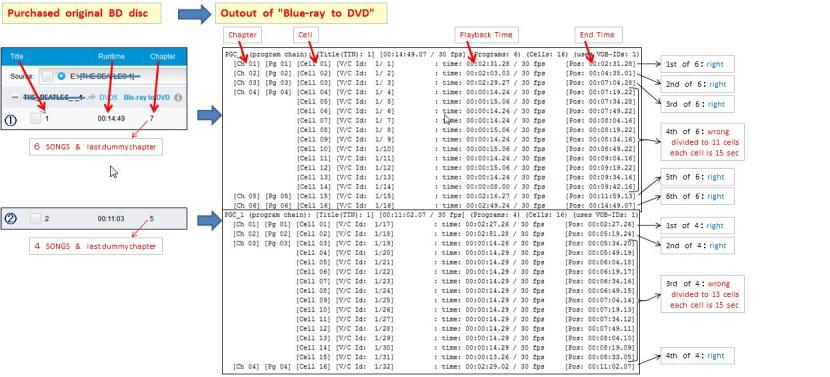

    I want to make DVD of only songs from BD with using customize mode,
    14 titles which have 27 songs selected from purchased original disc,
    chapter points of output chage and are mis-match like attached jpg files.

    (1) when title is less than 5 min : there is no problem.
    (2) when title is from 5 min to 10 min : it seems to ignore original and create new chapter point at 5 min. It has problem for replaying.
    (3) when title is over 10 min : it seems to divide certain cell to many cells of 15 sec. (This divided cell is seemed to existing in between 5 min to 10 min.) It would be no actual problem for replaying, because chapter points don't change.
    (4) all : dummy chapters of last of each title are convined to song. This is almost no problem because dummy chapters exist for making next chapter button effectve and are very short.

    Regards.
    Attached Files

    #2
    Additional information.

    There are mismatch of audio and video, at least 10 chapters.

    Any relationship with change of chapter points?

    Regard.

    Comment


      #3
      Hi jinjin_jp,

      I will check this issue asap, thanks for your report.

      Best Regards,
      Fengtao
      DVDFab is the all-in-one software package for copying Blu-ray/DVD and converting video file.
      http://www.dvdfab.cn

      Comment


        #4
        @fengtao

        Thanks very much.
        I'm lookikng forward to be resolved.

        Regards.

        Comment


          #5
          It's fixed, please test it in new build, thanks.
          DVDFab is the all-in-one software package for copying Blu-ray/DVD and converting video file.
          http://www.dvdfab.cn

          Comment


            #6
            Originally posted by fengtao View Post
            It's fixed, please test it in new build, thanks.
            Where is new build?

            Comment


              #7
              I tested ver.9.2.1.9.
              It is the latest version which I can get.
              But not fixed.

              Comment


                #8
                Originally posted by jinjin_jp View Post
                I tested ver.9.2.1.9.
                It is the latest version which I can get.
                But not fixed.
                Yes, it is not fixed on 9219. It was update on November 25, 2015.
                Waiting for the new version is out.
                User Manual for DVDFab v10 (pdf)

                DVDFab log default location:
                For Windows: C:\Users\User Name\Documents\DVDFab10\Log
                For Mac: Finder> Documents> DVDFab10> Log

                DVDFab Player 5:
                For Windows:C:\Users\User Name\Documents\DVDFab Player 5\Log

                Comment


                  #9
                  Tryed 9.2.2.1 betea

                  Originally posted by fengtao View Post
                  It's fixed, please test it in new build, thanks.
                  New!DVDFab 9.2.2.1 Beta is out!

                  Fix: Some minor changes and improvements.
                  I tryed 9.2.2.1 beta.
                  Chapter point becomes to right, but chapter was splitted to small cells.
                  Please see attatced file.

                  I couldn't confirm about mismatch of audio and video, because audio was missing.
                  There is no sound when replaying DVD-Video by WinDVD and PowerDVD.
                  (Output of ver.9.1.1.9 had no problem.)
                  There is sound when replaying VOB file by VLC player.

                  Regards.
                  Attached Files

                  Comment


                    #10
                    I confirmed all titles,
                    So, only 1 title become wrong chapter point.
                    What should be 1 chapter becomes 2 chapters.
                    Please see attatced file.

                    There are 8 titles which have 1 chapter.
                    Then only this title become 2 chapters, and other 7 titles are rightly 1 chapter.

                    Regards.
                    Attached Files

                    Comment


                      #11
                      I couldn't confirm about mismatch of audio and video, because audio was missing.
                      I found the reason why audio was missing.
                      It is because of description of PreCommand of IFO. Here is "(SetSTN) Set Audio track = 15:not set".

                      I confirmed other Fab's outputs remaining in my PC.
                      So, ver.9.2.1.6 beta is same as ver.9.2.2.1beta.
                      It is once fixed when ver.9.2.1.8, there is "(SetSTN) Set Audio track = 0", so no problem.
                      But it seems to be back wrong when ver.9.2.2.1 beta.

                      About "DVD Creator", Precommand was also wrong "(SetSTN) Set Audio track = 15:not set" when ver.9.2.1.6 beta ,
                      and fixed to ""(SetSTN) Set Audio track = 0" when ver.9.2.1.8, and continued to ver.9.2.2.1 beta.


                      There is no sound when replaying DVD-Video by WinDVD and PowerDVD.
                      (Output of ver.9.1.1.9 had no problem.)
                      This comment of post was my mis-recognization.
                      WinDVD has sound, it seems to ignore even if not set audio.
                      (I listened to only begininng of title which this part is no sound because of mismatch of audio and video.)

                      I can confirmed mismatch of audio and video is not fixed.

                      Regards.
                      Last edited by jinjin_jp; 12-23-2015, 10:31 AM.

                      Comment


                        #12
                        What tools do you use to check the results?
                        How does it show on fab?
                        It seems happend on special title.
                        Would you like Clone a iso then upload to us ? It will qiuckly repro your issue.
                        User Manual for DVDFab v10 (pdf)

                        DVDFab log default location:
                        For Windows: C:\Users\User Name\Documents\DVDFab10\Log
                        For Mac: Finder> Documents> DVDFab10> Log

                        DVDFab Player 5:
                        For Windows:C:\Users\User Name\Documents\DVDFab Player 5\Log

                        Comment


                          #13
                          What tools do you use to check the results?
                          (1)IFO description (structure of cells) => IfoEdit & PgcEdit.
                          Please look at attatched file of post #1 (right side) and #9 and #10.
                          They are screenshots of IfoEdit.

                          (2)IFO description (Pre Command) => IfoEdit & PgcEdit.
                          "(SetSTN) Set Audio track = ***" is copy-paste from PgcEdit.

                          (3)mismatch of audio and video. no sound =>WinDVD & PowerDVD


                          How does it show on fab?
                          Please look at attatched file of post #1 (left side).
                          They are screenshots of DVDFab.
                          There are shown title No. and runtime and number of chapters.
                          Number of chapters is one more than number of music clips, because last chapter is dummy chapter which exists for making next chapter button effectve and is very short.


                          It seems happend on special title.
                          Each title of music clip is consisted of 2 m2ts files, first is song's tile and short and (perhaps) no sound, second is usual music clip. I feel it is unusual type.


                          Would you like Clone a iso then upload to us ? It will qiuckly repro your issue.
                          Please look at PM box. I'll send later.

                          Regards.

                          Comment


                            #14
                            Tryed 9.2.2.3

                            New!DVDFab 9.2.2.3 is out!

                            Fix: Some minor changes and improvements.
                            The result was same about below.
                            *chapter was splitted to small cells. 1 title become wrong chapter point.
                            * mismatch of audio and video.

                            Below is changed, but wrong.
                            *PreCommand of SetSTN =>changed to "(SetSTN) Set Audio track = 1". It should be "0" not "1", because there's not existing audio"1".

                            Regards.

                            Comment


                              #15
                              *chapter was splitted to small cells. 1 title become wrong chapter point.
                              * mismatch of audio and video.
                              About the problem "chapter was splitted to small cells. 1 title become wrong chapter point.", I found a part of reason and the method to avoid it.
                              Titles of BD are consist of songs themselves and last dummy chapter. It can be avoided by not checking last dummy chapter when processing BD_to_DVD.

                              But the problem "mismatch of audio and video" is remaining.

                              Regards.

                              Comment
