BD Ripper (3D Plus) Epic - Banding

[Cooltails]

I'm ripping Epic 2D Bluray but has banding across the top and bottom of the screen, sound is fine. The disc plays fine i've tried loads of different options but cannot get a clean rip, Any ideas?

[glenns]

If your talking about black bars that's normal for a letterboxed film that's a wide screen movie most new releases are like this.

[Cooltails]

No,its weird it like like faded white bars across the top and bottom of the picture, a bit like pixelation, but when using mkv passthrough giant file but none of this weirdness, its really hard to explain but makes it unwatchable.

[GregiBoy]

My version of Epic shows up at 1:235 aspect ratio which translates to ~ 1920 x 820 which would give 130 pixel "letterboxing" at top and bottom.

[Wilson.Wang]

Hi,

Would you please give us the screenshot and post your log file?

Wilson

[Cooltails]

Hi,

Would you please give us the screenshot and post your log file?

Wilson

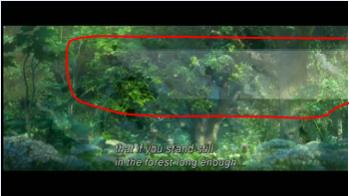

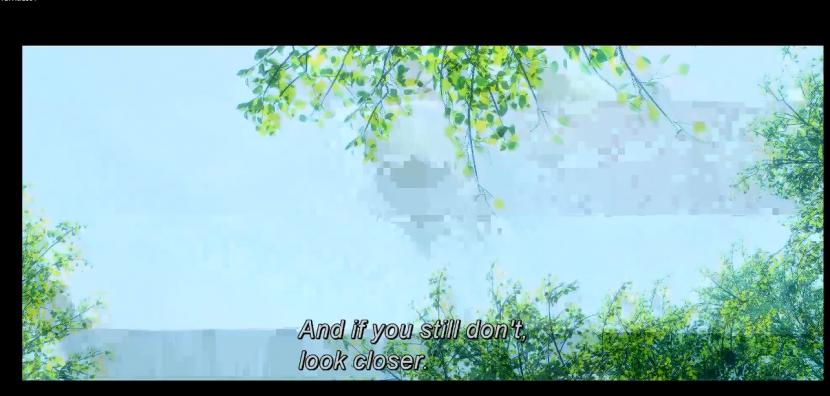

Hi no problem, see attached, its the same on every format except mkv passthrough i tried, although the white band \ pixel band moves from top to bottom of the video screen.


DVDFab 9.0.7.0 (2013/10/08 20:55:55)

0m 00.12s: Start preload dll...
0m 00.17s: Load dll successful.
0m 00.17s: Start load fabplay dll...
0m 00.24s: Load fabplay dll successful.
0m 00.25s: Transfer settings successful.
0m 00.25s: fab_check_gpu is running ...
0m 00.65s: fab_check_gpu run successful
0m 00.65s: GPUAccelerate: 455
0m 00.66s: CUDA cap: 0
0m 00.66s: Support coreavc decode: 0
0m 00.66s: Graphics info: AMD Radeon HD 6470M : :
0m 00.67s: Load config successful.
0m 00.67s: Windows os type is: 14.
0m 00.73s: Parse string is: 11:1401302048
0m 00.73s: Parse string is: 21:1413809565
0m 00.73s: Parse string is: 22:1413809565
0m 00.73s: Parse string is: OV:9063
0m 00.74s: Parse string is: BV:9069
0m 00.74s: Parse string is: S:771073c0453cf0f7a781e020f9906f21
0m 00.74s: Option check status: Local
0m 00.75s: option dvd2dvd 1 dvd2mobile 1 bluray2bluray 1 bd2mobile 1 bd23d 1 bd2dvd 1 file2dvd 1 file2bluray 1 file2mobile 1
0m 00.75s: Start get sys number.
0m 00.75s: Init GPU settings sucessful.
0m 00.75s: CommmandLine:
0m 00.75s: Serial number is: 90-00-4e-cc-13-fa:12-00-4e-cc-13-f9:52-00-4e-cc-13-f9:90-00-4e-cc-13-f9:f0-bf-97-61-2f-42
0m 00.82s: Reg URL link is:
0m 00.82s: Version is: 9070
0m 00.82s: Product is: 2
0m 00.83s: Connect type is: 0
0m 01.37s: Begin init preview play engine.
0m 01.41s: Init internal engine successful.
0m 01.67s: Profile Manager :: End Load Profile
0m 01.88s: Times of connecting error is: 0
0m 01.89s: Parse string is: 11:1401302048
0m 01.89s: Parse string is: 21:1413809565
0m 01.90s: Parse string is: 22:1413809565
0m 01.90s: Parse string is: OV:9063
0m 01.91s: Parse string is: BV:9069
0m 01.91s: Parse string is: S:ff00652b53cdc0e39a526e3836857a2b
0m 01.93s: Option check status: NewWork
0m 01.93s: option dvd2dvd 1 dvd2mobile 1 bluray2bluray 1 bd2mobile 1 bd23d 1 bd2dvd 1 file2dvd 1 file2bluray 1 file2mobile 1
0m 04.12s: Init burn engine successful.
0m 04.89s: Init driveX with I/O mode: 0
0m 05.09s: opening drive D
0m 05.09s: opened i/o
0m 35.46s: opening drive D
0m 38.75s: opened i/o
0m 38.76s: got media type 15
0m 39.26s: got max lba 21519487
0m 40.09s: got disc type 20
0m 40.09s: type Blu-ray BDMV
0m 40.10s: volume label EPIC
0m 40.13s: opening drive D
0m 40.13s: opened i/o
0m 40.16s: got max lba 21519487
0m 40.24s: got disc type 20
0m 40.24s: internal path D:/BDMV/
0m 40.79s: aacs 1 bd+ 1
0m 41.01s: got bdmv
0m 41.03s: movie name: epic
0m 41.03s: got agid 0
0m 41.06s: sent host cert chal
0m 41.06s: got drive cert chal
0m 41.07s: BEC 0
0m 41.07s: DRIVE_VENDOR 0x0002
0m 41.10s: got drive key
0m 41.10s: got host key signature
0m 41.10s: verified drive signature
0m 41.11s: verified host signature
0m 41.14s: sent host signature and key point
0m 41.14s: got bus key
0m 41.15s: got volume id
0m 41.15s: got volume id mac
0m 41.15s: volume id is correct
0m 41.15s: got vid
0m 41.21s: blu-ray 40FB2EBEB194D7EBE1DCA47B9342A4152B749CA9
0m 41.74s: cert BEE=0x00 same
0m 43.47s: got agid 0
0m 43.50s: sent host cert chal
0m 43.51s: got drive cert chal
0m 43.51s: BEC 0
0m 43.52s: DRIVE_VENDOR 0x0002
0m 43.55s: got drive key
0m 43.56s: got host key signature
0m 43.57s: verified drive signature
0m 43.57s: verified host signature
0m 43.61s: sent host signature and key point
0m 43.62s: got bus key
0m 51.36s: D AFCC356C
1m 45.36s: got vuk
1m 45.37s: got fut
1m 48.42s: got unit key 7
2m 26.33s: got bdmv
2m 45.59s: got extended bdinfo
2m 45.59s: opened blu-ray
2m 54.36s: Work Profile : The New iPad.Default
4m 00.61s: Start check Blu-ray Ripper (3D Plus) register status.
4m 00.62s: End check Blu-ray Ripper (3D Plus) register status: Enable
4m 00.63s: OPList at BD Ripper : (4113.2),(4352.2),(4608.8)
4m 00.63s: Blu-ray ripper (3D Plus) check watermark flag: 0
4m 03.77s: ------------------ convert work begin(1/1) ------------------
4m 03.78s: info: create config(bluray2video)
4m 03.80s: info: use profile(The New iPad.Default)
4m 03.81s: info: bluray playlist(801),angle(0),chapter(1->29),BDAV(no)
4m 03.82s: info: 3D working_mode(disable), 3D format(sbs_lef_right)
4m 03.83s: info: stream input@ Video(4113)[codec(h264) size(1920*1080) fps(24000/1001) interlace(0) opcode(compress)]
4m 03.83s: info: perset file config OK !
4m 03.84s: info: set output video frame_rate(24000/1001)
4m 03.84s: info: stream output Video(4113)[codec(h264) size(1920*1080) fps(24000/1001) interlace(0)]
4m 03.85s: info: stream input@ Audio(4352)[codec(dca) channels(8) sample(48000) bitrate(0) bitdepth(24) opcode(compress)]
4m 03.86s: info: stream output Audio(4352)[codec(aac) channels(2) sample(48000) bitrate(128000) bitdepth(16)]
4m 03.86s: info: stream input@ SubPicture(4608)[codec(pgssub) language(English) opcode(render)]
4m 03.87s: info: SubMode(Render) -- Display Only forced Subtitle(false)
4m 03.88s: DXVA GPU acceleration for video decoding enabled
4m 04.90s: info: h264_encode: encode param profile(1) level(41) bitrate(7408) crf(-1)
4m 07.96s: info: connect to sub render filter success.
4m 10.01s: info: processing source(00600.m2ts)
5m 13.38s: audio_encode finish job
5m 13.93s: info: audio_decode finish job
5m 15.16s: ------------------ all convert work cancelled -------------------

[Wilson.Wang]

Hi,

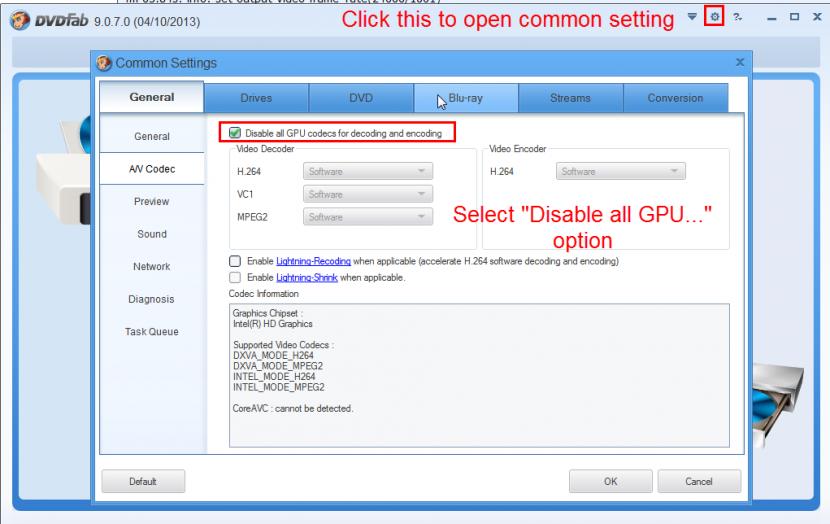

Please select "Disable all GPU..." option in Common Setting -> General -> A/V code and have a try.

Wilson

[Cooltails]

Hi Wilson,

Thanks, will do!!

[Trollito]

I Have the same problem and i solve it by update my GPU Drivers.
