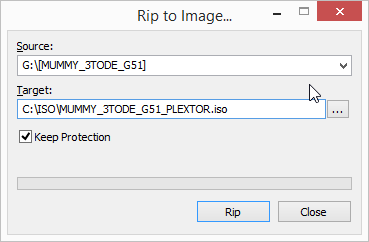

When I rip a bluray with the setting 'Keep Protection' in passkey the final iso file is too big when I use my external BD-drive 'Plextor PX-B120U' - but when I rip the same disc with my internal drive everything is fine.
Unfortunately the logfile does not include details about the ripping process, but as you can see the 'got max lba' line shows 2 different values although it's always the same disc (at fist I inserted into the Plextor drive (max lba 24230143), ripped it to iso and got a file with the size '49 623 334 912' bytes - next I inserted into my internal Liteon drive (max lba 24028479), ripped it to iso and got a file with the size '49 210 327 040' bytes).
So the image created with the plextor drive is ~400MB bigger!
Basically you could say the plextor drive does something wrong - but the interesting thing is: when I rip the same disc in the Plextor drive with AnyDVD I also get an image with the correct size '49 210 327 040' bytes!
So it seems Passkey does something wrong when calculating the 'max lba' value and AnyDVD make it right, because it's result is correct.
I also compared the correct and the bigger iso with a hex editor - they are completely identical and the additional information at the end of the bigger file is only filled with zeros.
Here's the log:
Unfortunately the logfile does not include details about the ripping process, but as you can see the 'got max lba' line shows 2 different values although it's always the same disc (at fist I inserted into the Plextor drive (max lba 24230143), ripped it to iso and got a file with the size '49 623 334 912' bytes - next I inserted into my internal Liteon drive (max lba 24028479), ripped it to iso and got a file with the size '49 210 327 040' bytes).
So the image created with the plextor drive is ~400MB bigger!
Basically you could say the plextor drive does something wrong - but the interesting thing is: when I rip the same disc in the Plextor drive with AnyDVD I also get an image with the correct size '49 210 327 040' bytes!
So it seems Passkey does something wrong when calculating the 'max lba' value and AnyDVD make it right, because it's result is correct.
I also compared the correct and the bigger iso with a hex editor - they are completely identical and the additional information at the end of the bigger file is only filled with zeros.
Here's the log:
Code:
3m 42.84s: opening drive G 3m 42.84s: opened i/o 3m 42.86s: got media type 15 3m 43.48s: got max lba 24230143 3m 45.12s: got disc type 20 3m 45.12s: type Blu-ray BDMV 3m 45.13s: volume label MUMMY_3TODE_G51 3m 45.13s: bd set region B 3m 45.16s: internal path G:/BDMV/ 3m 45.87s: aacs 1 bd+ 0 3m 46.15s: got bdmv 3m 53.77s: got agid 0 3m 54.77s: sent host cert chal 3m 54.78s: got drive cert chal 3m 54.80s: BEC 0 3m 54.80s: DRIVE_VENDOR 0x0128 3m 56.37s: got drive key 3m 56.48s: got host key signature 3m 56.48s: verified drive signature 3m 56.48s: verified host signature 3m 58.23s: sent host signature and key point 3m 58.24s: got bus key 3m 58.26s: got volume id 3m 58.27s: got volume id mac 3m 58.27s: volume id is correct 3m 58.29s: got vid 3m 58.49s: blu-ray FAA8AD2717FCCE69EF6A626794E273A5F13043D4 3m 59.31s: cert BEE=0x00 same 4m 00.27s: D AF8D30D9 4m 00.32s: main playlist 00000.mpls 4m 00.32s: selected region A 4m 00.32s: bd set region A 4m 00.34s: got vuk 4m 00.74s: got unit key 7 4m 00.76s: blupath: movie disc 4m 01.74s: StealthyClone with BluPath 4m 02.93s: full disc copy/play is supported 4m 03.18s: got bdmv 4m 11.45s: got extended bdinfo 4m 11.45s: opened blu-ray 71m 51.19s: opening drive D 71m 51.20s: opened i/o 71m 51.48s: got media type 15 71m 52.06s: got max lba 24028479 71m 53.08s: got disc type 20 71m 53.09s: type Blu-ray BDMV 71m 53.09s: volume label MUMMY_3TODE_G51 71m 53.10s: bd set region B 71m 53.11s: internal path D:/BDMV/ 71m 53.66s: aacs 1 bd+ 0 71m 53.84s: got bdmv 72m 01.13s: got agid 0 72m 01.96s: sent host cert chal 72m 01.97s: got drive cert chal 72m 01.98s: BEC 1 72m 01.98s: DRIVE_VENDOR 0x0080 72m 03.28s: got drive key 72m 03.29s: got host key signature 72m 03.29s: verified drive signature 72m 03.30s: verified host signature 72m 04.75s: sent host signature and key point 72m 04.75s: got bus key 72m 04.77s: got volume id 72m 04.77s: got volume id mac 72m 04.78s: volume id is correct 72m 04.79s: got vid 72m 04.95s: blu-ray FAA8AD2717FCCE69EF6A626794E273A5F13043D4 72m 05.48s: cert BEE=0x00 same 72m 06.28s: D AF8D30D9 72m 06.32s: main playlist 00000.mpls 72m 06.33s: selected region A 72m 06.33s: bd set region A 72m 06.34s: got vuk 72m 06.64s: got unit key 7 72m 06.64s: blupath: movie disc 72m 07.66s: StealthyClone with BluPath 72m 08.46s: full disc copy/play is supported 72m 08.55s: got bdmv 72m 15.71s: got extended bdinfo 72m 15.71s: opened blu-ray
