    Mac Rip Dolby Vision Disk

    I've ripped a Dolby Vision (DV) disk using both MAC v 11.0.8.6 and MAC v 11.0.9.7 getting different results.
    With MAC v11.0.8.6 I ripped to mp4 using the mp4 option selecting Dolby Vision option. In the 'Advanced Setting' window I selected the Single Stream option in the dolby Vision tab, the copy video box was also checked. I ended up with a DV file, media info below (single video stream)

    Video
    ID : 1
    Format : HEVC
    Format/Info : High Efficiency Video Coding
    Format profile : Main 10@L5.1@High
    HDR format : Dolby Vision, Version 1.0, dvhe.05.06, BL+RPU / SMPTE ST 2086, HDR10 compatible
    Codec ID : dvhe
    Codec ID/Info : High Efficiency Video Coding with Dolby Vision
    Duration : 1h 50mn
    Bit rate : 56.6 Mbps
    Width : 3 840 pixels
    Height : 2 160 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Constant
    Frame rate : 23.976 (24000/1001) fps
    Color space : YUV
    Chroma subsampling : 4:2:0 (Type 2)
    Bit depth : 10 bits
    Bits/(Pixel*Frame) : 0.285
    Stream size : 43.6 GiB (98%)
    Encoded date : UTC 2020-07-15 04:50:43
    Tagged date : UTC 2020-07-15 05:22:42
    Color range : Limited
    Color primaries : BT.2020
    Transfer characteristics : PQ
    Matrix coefficients : BT.2020 non-constant
    Mastering display color primaries : Display P3
    Mastering display luminance : min: 0.0001 cd/m2, max: 1000 cd/m2
    Codec configuration box : hvcC+dvcC

    When I stream the video to my LG TV the TV recognizes the video as a DV source (I get a Dolby Vision marker in the upper right corner of TV just like if the source is HDR). The resulting video displayed is Green and the video is not stable lots of stuttering effect.

    When I use v 9.7 and select mp4 passthrough then select 'Copy Dolby Vision' in the 'Advanced setting' window I end up with a HDR video no DV (I get two video streams) see media info below


    Video #1
    ID : 1
    Format : HEVC
    Format/Info : High Efficiency Video Coding
    Format profile : Main 10@L5.1@High
    HDR format : SMPTE ST 2086, HDR10 compatible
    Codec ID : hvc1
    Codec ID/Info : High Efficiency Video Coding
    Duration : 1h 50mn
    Source duration : 1h 50mn
    Bit rate : 56.5 Mbps
    Width : 3 840 pixels
    Height : 2 160 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Constant
    Frame rate : 23.976 (24000/1001) fps
    Color space : YUV
    Chroma subsampling : 4:2:0 (Type 2)
    Bit depth : 10 bits
    Bits/(Pixel*Frame) : 0.284
    Stream size : 43.5 GiB (88%)
    Source stream size : 43.5 GiB (88%)
    Encoded date : UTC 2020-07-15 14:28:03
    Tagged date : UTC 2020-07-15 15:04:11
    Color range : Limited
    Color primaries : BT.2020
    Transfer characteristics : PQ
    Matrix coefficients : BT.2020 non-constant
    Mastering display color primaries : Display P3
    Mastering display luminance : min: 0.0001 cd/m2, max: 1000 cd/m2
    Menus : 7
    Codec configuration box : hvcC

    Video #2
    ID : 2
    Format : HEVC
    Format/Info : High Efficiency Video Coding
    Format profile : Main 10@L5.1@High
    HDR format : SMPTE ST 2086, HDR10 compatible
    Codec ID : hvc1
    Codec ID/Info : High Efficiency Video Coding
    Duration : 1h 50mn
    Source duration : 1h 50mn
    Bit rate : 6 343 Kbps
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Constant
    Frame rate : 23.976 (24000/1001) fps
    Color space : YUV
    Chroma subsampling : 4:2:0 (Type 2)
    Bit depth : 10 bits
    Bits/(Pixel*Frame) : 0.128
    Stream size : 4.88 GiB (10%)
    Source stream size : 4.88 GiB (10%)
    Encoded date : UTC 2020-07-15 14:28:03
    Tagged date : UTC 2020-07-15 15:04:11
    Color range : Limited
    Color primaries : BT.2020
    Transfer characteristics : PQ
    Matrix coefficients : BT.2020 non-constant
    Mastering display color primaries : Display P3
    Mastering display luminance : min: 0.0001 cd/m2, max: 1000 cd/m2
    Codec configuration box : hvcC


    Appears MAC v 11.0.9.7 does not support DV rip. IF MAC v 11.0.8.6 supports DV ripping am I missing something in my process?

    #2
    To better check the issue, please attach the internal log file from both v11.0.8.6 and v11.0.9.7, thanks.
    DVDFab log default location:
    For Windows: C:\Users\User Name\Documents\DVDFab11\Log
    For Mac: Finder>Documents>DVDFab11>Log

    DVDFab Player 5:
    For Windows: C:\Users\User Name\Documents\DVDFab Player 5\Log
    For Mac: Finder>Documents>DVDFab Player 5>Log

    Guide for adding attachments in a post
    --Please use attachment button to attach your most recent log files.

    Comment


      #3
      logs from 11.0.8.6 and 11.0.9.7
      dvdfab_internal.(11.0.8.6).log.txt
      dvdfab_internal.(11.0.9.7).log.txt

      Comment


        #4
        Here is the log of another rip of a DV disk. This a mp4.Dolby Vision with two stream option selected in the Advanced Settings. The LG TV recognizes the video as a DV source but again the Video is Green, video is stable no stuttering effect unlike the single stream version. I used version 11.0.8.6 MAC to do the rip.

        dvdfab_internal.(11.0.8.6)(2-streams).log.txt



        Comment


          #5
          Originally posted by thpierce View Post
          Here is the log of another rip of a DV disk. This a mp4.Dolby Vision with two stream option selected in the Advanced Settings. The LG TV recognizes the video as a DV source but again the Video is Green, video is stable no stuttering effect unlike the single stream version. I used version 11.0.8.6 MAC to do the rip.

          [ATTACH]n383782[/ATTACH]


          Please pick profile(MP4.Dolby Vision) in v110.9.7 to convert again and see the result. Thanks.
          DVDFab log default location:
          For Windows: C:\Users\User Name\Documents\DVDFab11\Log
          For Mac: Finder>Documents>DVDFab11>Log

          DVDFab Player 5:
          For Windows: C:\Users\User Name\Documents\DVDFab Player 5\Log
          For Mac: Finder>Documents>DVDFab Player 5>Log

          Guide for adding attachments in a post
          --Please use attachment button to attach your most recent log files.

          Comment


            #6
            There is NO MP4.Dolby.Vision Profile Option in 11.0.9.7
            Once the iso is loaded the options are:
            Profiles:
            1) Choose Other Profile... Options are A) M2TS.Passthrough B) MKV.Passthrough C) MP4.Passthrough
            2) Theater (MP4.Passthrough) No Options

            When I choose the 1st Option "Choose Other Profiles" If I check Dolby Vision with any of the A,B or C options I get sad face "No Matched Profile"

            NOW 11.0.8.6 DOES have a MP4.Dolby.Vision Profile Option
            If I select the Profile MP4 Dolby.Vision, I get MP4 Dolby.Vision option and DolbyVision box checked I can then go to Advanced Settings and select Single Stream or Two Streams.

            NOTE I am using MAC version of DVDFAB
            Last edited by thpierce; 07-22-2020, 05:03 AM.

            Comment


              #7

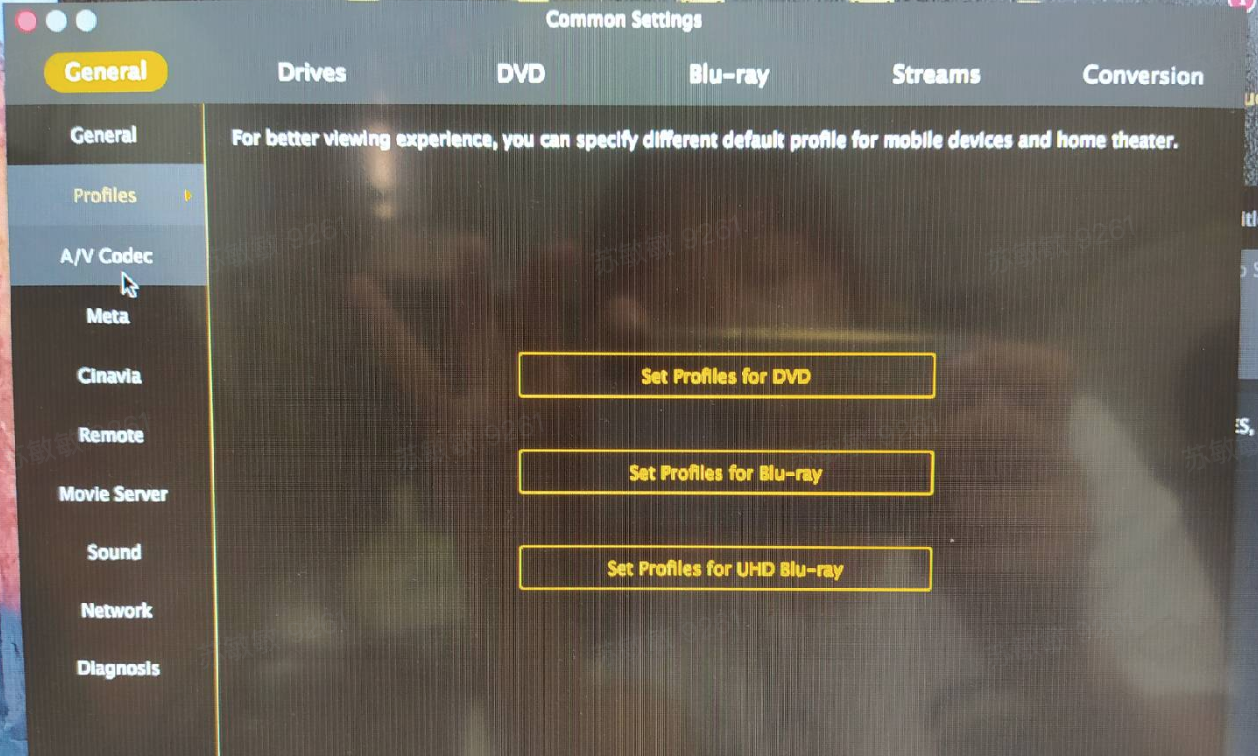

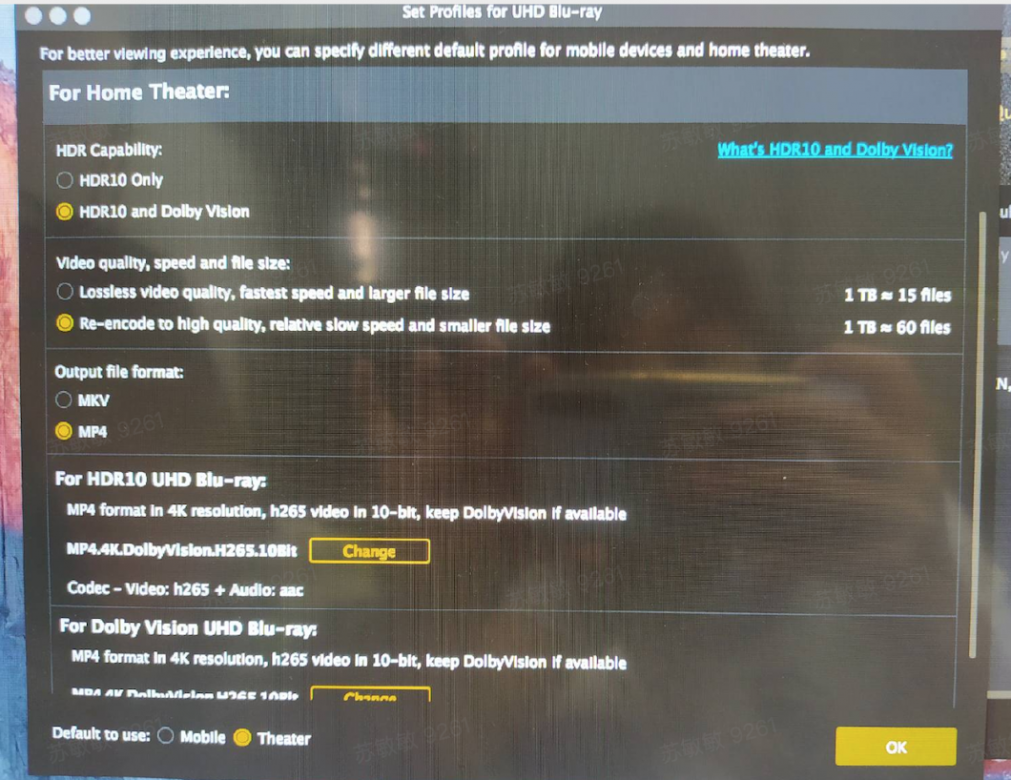

              You can adjust the setting in DVDFab Common Settings > General section. Please check image attached.

              Attached Files
              DVDFab log default location:
              For Windows: C:\Users\User Name\Documents\DVDFab11\Log
              For Mac: Finder>Documents>DVDFab11>Log

              DVDFab Player 5:
              For Windows: C:\Users\User Name\Documents\DVDFab Player 5\Log
              For Mac: Finder>Documents>DVDFab Player 5>Log

              Guide for adding attachments in a post
              --Please use attachment button to attach your most recent log files.

              Comment


                #8
                I ran three different scenarios:
                I make seperate post with the result. Test A, B and C
                All Test ran with MAC DVDFAB 11.0.9.7


                Test A:
                This was run with MP4 Passthrough with Copy Dolby Vision
                Resulted in a HDR video SEE Attached for details on Test A
                dvdfab_internal.log.txt
                Test A Summary.rtf.txt
                Media Info.rtf.txt

                Attached Files
                Last edited by thpierce; 07-23-2020, 04:38 AM.

                Comment


                  #9
                  Test A continued Screen Grabs:

                  Click image for larger version

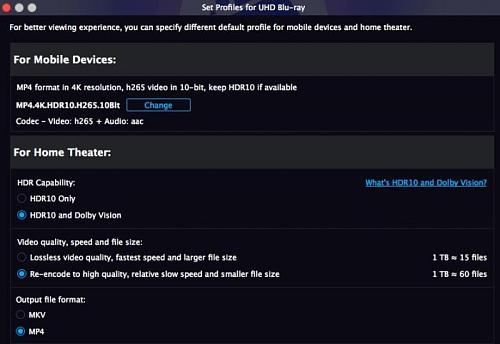

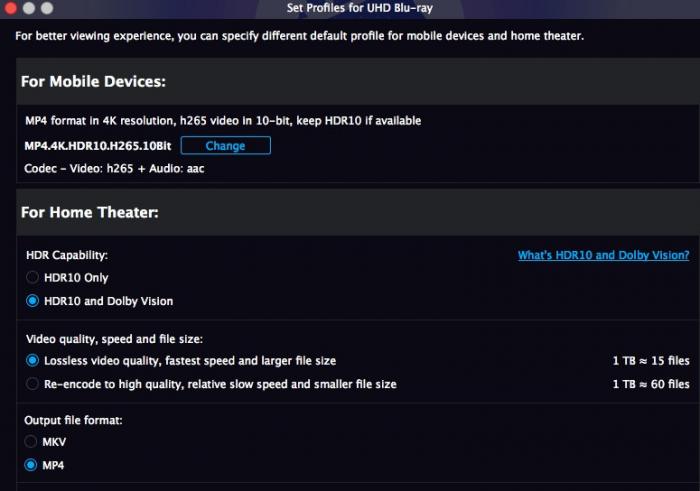

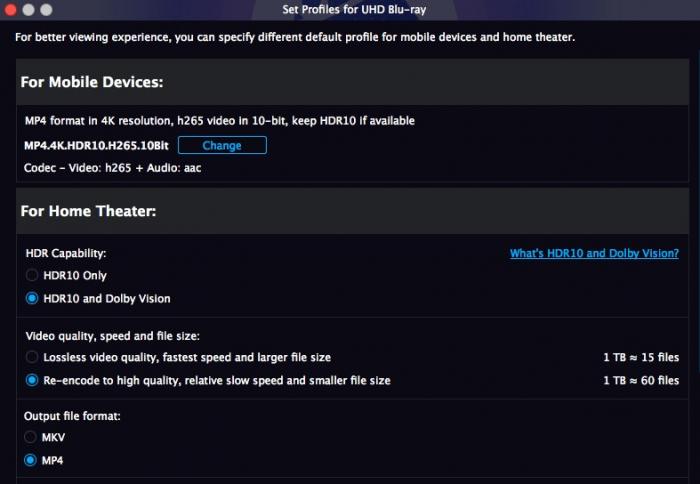

Name:	Set Profile Upper Portion of Screen.jpg
Views:	42
Size:	35.4 KB
ID:	383916 Click image for larger version

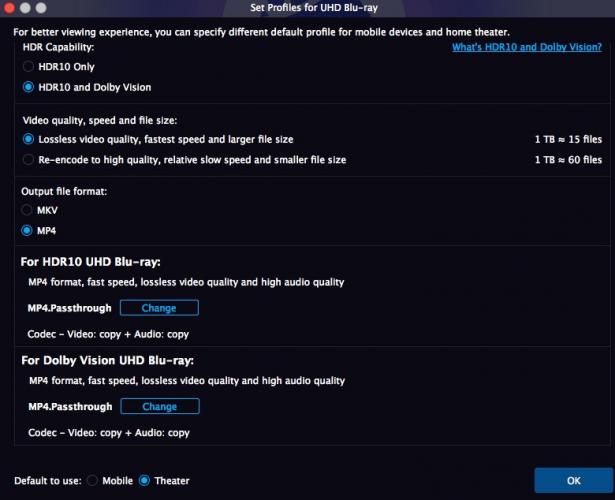

Name:	Set Profile Lower portion of Screen.jpg
Views:	37
Size:	35.2 KB
ID:	383917 Click image for larger version

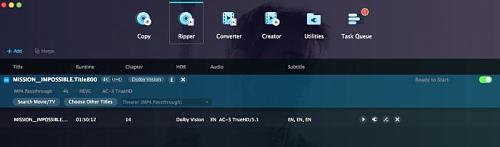

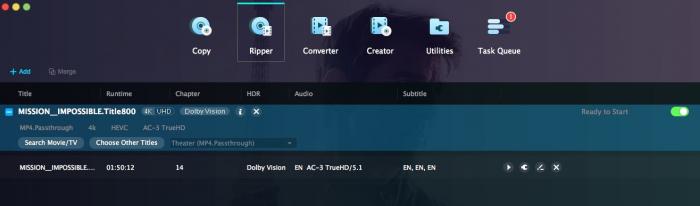

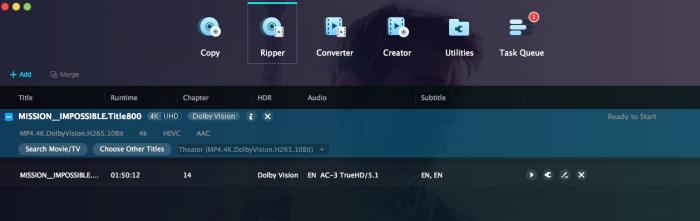

Name:	Main Screen.jpg
Views:	37
Size:	15.2 KB
ID:	383918 Click image for larger version

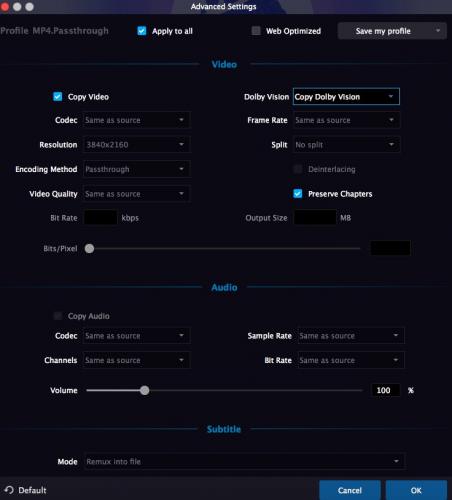

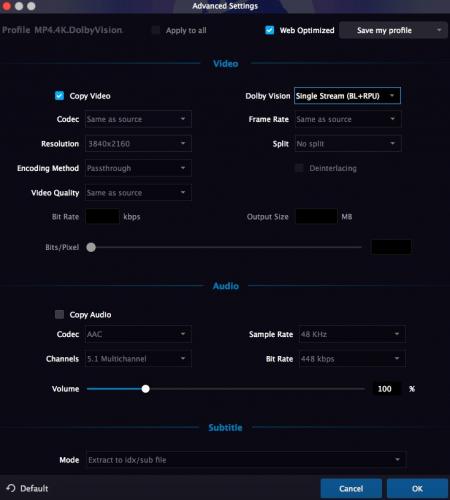

Name:	Advance Settings.jpg
Views:	38
Size:	21.5 KB
ID:	383919

                  Comment


                    #10
                    Test B:
                    This was run with Re-encoding Dolby Vision
                    MP4.DolbyVision.H265.10bit
                    Single Stream (BL + RPU)
                    See attached files
                    Note in DVDFAB internal Log I had to delect fifo lines in order to make package < 2MB
                    Results was a DolbyVideo source recognized by TV but color was Green and not a stable image
                    dvdfab_internal(Test-B).log.txt
                    Test B summary.rtf.txt
                    Media Info.rtf.txt
                    Attached Files
                    Last edited by thpierce; 07-23-2020, 04:20 AM.

                    Comment


                      #11
                      Test B :
                      Screen Grab

                      Click image for larger version

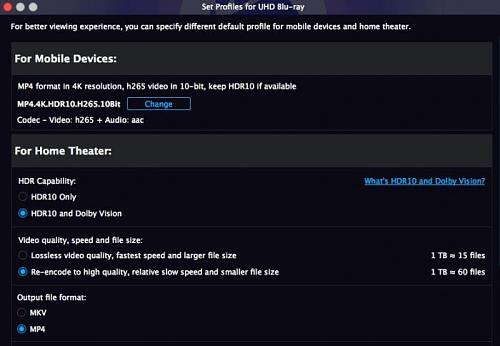

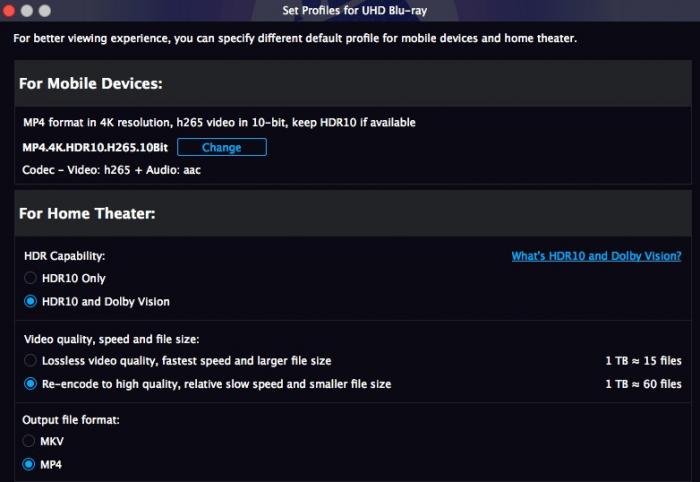

Name:	Set Profile Upper Portion.jpg
Views:	44
Size:	35.5 KB
ID:	383925 Click image for larger version

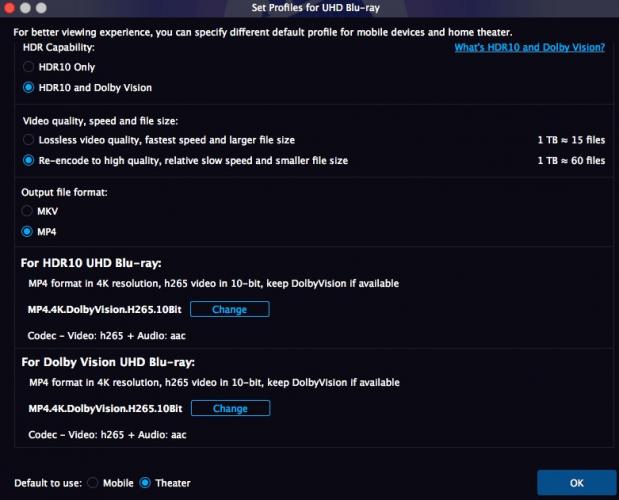

Name:	Set Profile Lower Portion.jpg
Views:	40
Size:	22.3 KB
ID:	383926 Click image for larger version

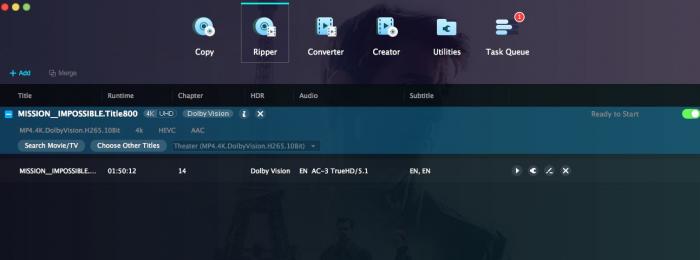

Name:	Main Screen.jpg
Views:	37
Size:	15.3 KB
ID:	383927 Click image for larger version

Name:	Advanced Setting.jpg
Views:	39
Size:	21.0 KB
ID:	383928

                      Comment


                        #12
                        Test C:
                        This was run with Re-encoding Dolby Vision
                        MP4.DolbyVision.H265.10bit
                        Two Stream (BL/EL + RPU)
                        See attached files
                        Note in DVDFAB internal Log I had to delect fifo lines in order to make package < 2MB
                        Results was a DolbyVideo source recognized by TV but color was Green and a stable image

                        dvdfab_internal(Test C).log.txt
                        Test C summary.rtf.txt
                        Media Info.rtf.txt



                        Comment


                          #13
                          Test C:
                          Screen Grab


                          Click image for larger version

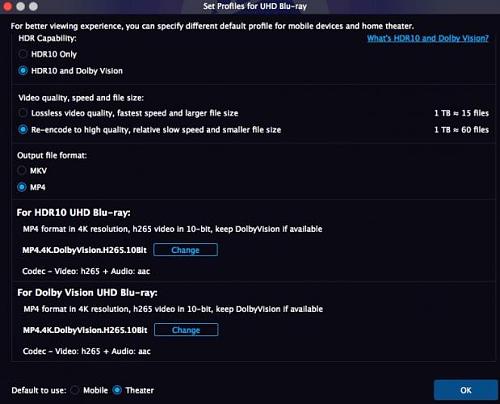

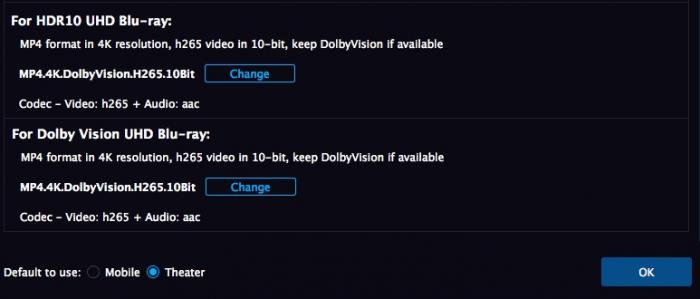

Name:	Set Profile Upper Portion.jpg
Views:	41
Size:	35.4 KB
ID:	383934 Click image for larger version

Name:	Set Profile Lower Portion.jpg
Views:	36
Size:	36.6 KB
ID:	383935 Click image for larger version

Name:	Main Screen.jpg
Views:	36
Size:	15.7 KB
ID:	383936 Click image for larger version

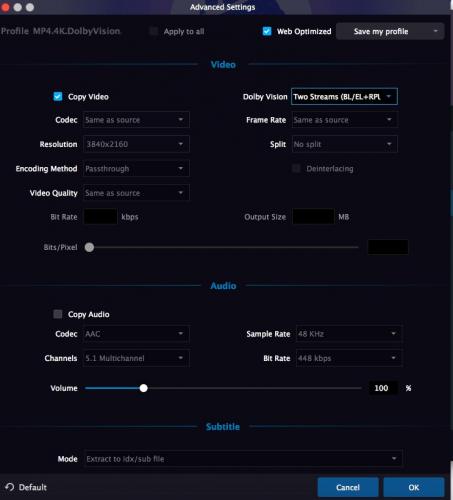

Name:	Advance Setting.jpg
Views:	37
Size:	21.6 KB
ID:	383937

                          Comment


                            #14
                            Screen Grab from TV for Test A,B & C

                            Click image for larger version

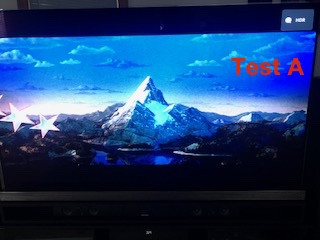

Name:	Test A.jpg
Views:	39
Size:	23.7 KB
ID:	383939 Click image for larger version

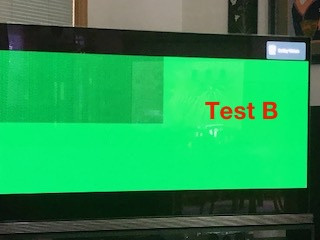

Name:	Test B.jpg
Views:	35
Size:	17.8 KB
ID:	383940 Click image for larger version

Name:	Test C.jpg
Views:	37
Size:	14.1 KB
ID:	383941

                            Comment


                              #15
                              I see, I will have the developer check.
                              DVDFab log default location:
                              For Windows: C:\Users\User Name\Documents\DVDFab11\Log
                              For Mac: Finder>Documents>DVDFab11>Log

                              DVDFab Player 5:
                              For Windows: C:\Users\User Name\Documents\DVDFab Player 5\Log
                              For Mac: Finder>Documents>DVDFab Player 5>Log

                              Guide for adding attachments in a post
                              --Please use attachment button to attach your most recent log files.

                              Comment
