DVD Ripper Version 8.0.3.2 - No Video in DivX/XviD file after 2 pass encoding

[Rubber_-_Duck]

I updated to the new 8.0.3.2 and now when I try to convert a dvd to a generic divx/xvid with mp3 the output file is the right size but there is no video contained within the file.

When I revert back to 8.0.2.2 it all works perfectly.

I've tried uninstalling and reinstalling instead of updating and that didn't work either.

Is this a known issue that will be addressed or am I a one off?

In my settings I use:
2 Pass
3200 kbps video
320 kbps mp3 audio
720x400 resolution
Deinterlace
CUDA is disabled as I thought that might be the issue but it doesn't work with or without it.

Like I said above these settings worked in 8.0.2.2 and all the way back to 6.2.1.8 it only occurs for me when using 8.0.3.2. Any help or advice would be much appreciated.

Pc setup is:

Intel Core 2 Duo E8400 @ stock 3.00GHz
4 Gig RAM
nVIDIA 9800 GTX
Windows 7 64bit

[Complication]

You neglected to mention what you were trying to play this back with. Have your tried the free VLC player? You might want to include the output from MediaInfo (google it) and posibly the logs (see Help Us Help You sticky thread) so the developers have more information.

[signals]

All of the internal codecs were updated in v.8.0.2.8 and there was a problem with the xvid codec (which is used for all the "DivX" profiles) that was fixed in v8.0.2.9 but may have crept back in. I get a crash when testing anything that uses the xvid codec and have reported it to the developers.

[Rubber_-_Duck]

You neglected to mention what you were trying to play this back with. Have your tried the free VLC player? You might want to include the output from MediaInfo (google it) and posibly the logs (see Help Us Help You sticky thread) so the developers have more information.

I'm using WMP12 I'll do another attempt and post the results.

Basically the file doesn't show up as a true avi file when I use 8.0.3.2, The file name, size and extension are correct but there is no thumbnail just the generic avi thumb and all the file properties are empty except for size and creation date. It's like it hasn't finished finalizing it.

I'll post logs and screen shots after my next attempt in the morning (it's 2am right now)

Like I said though when I revert back to 8.0.2.2 I don't have this issue

[Rubber_-_Duck]

Here is the very brief log file entry from dvdfab_internal.log

DVDFab 8.0.3.2 (2010/11/06 02:19:14)

0m 00.68s: option dvd2dvd 1 dvd2mobile 1 bluray2bluray 1 bd2mobile 1 file2mobile 1 filemover 1
0m 06.05s: pathplayer enabled
0m 48.57s:


------ begin mobile work(1/1) ------


0m 48.57s: create config(0)
0m 48.57s: convert profile(generic.default)
0m 48.57s: dvd title(1) angle(0) chapter(1->9)
0m 48.57s: stream(480,2,1) stream(128,86019,1)
0m 54.69s: warning: stream tag DX50/0x30355844 incompatible with output codec id '63'
31m 19.68s: warning: stream tag DX50/0x30355844 incompatible with output codec id '63'
82m 08.27s:


------ finish mobile work ------

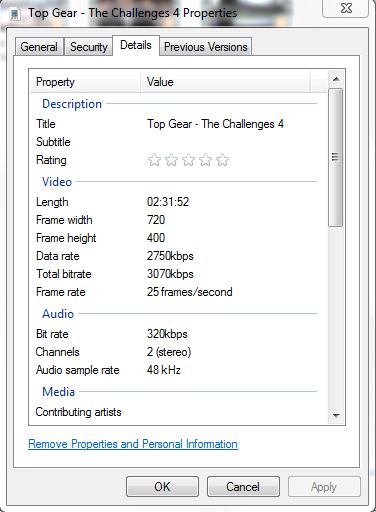

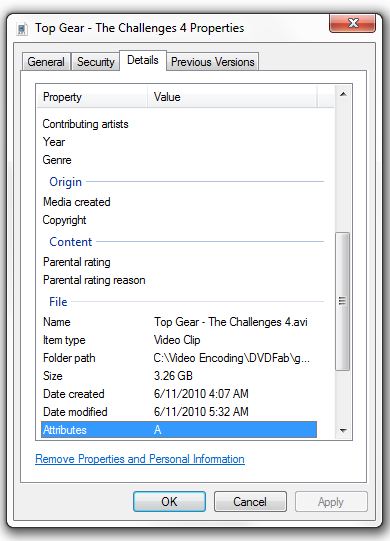

Attached are screenshots of my file properties for both 8.0.2.2 and 8.0.3.2 in which you can see both are 3.26GB in size but the 8.0.3.2 file properties have no info about video audio etc.

[Rubber_-_Duck]

I've rerun it again so I could do a MediaInfo check on it.

dvdfab_internal.log

------ begin mobile work(1/1) ------


111m 40.04s: create config(0)
111m 40.04s: convert profile(generic.avi.divx.mp3)
111m 40.04s: dvd title(1) angle(0) chapter(1->9)
111m 40.04s: stream(480,2,1) stream(128,86019,1)
111m 47.90s: warning: stream tag DX50/0x30355844 incompatible with output codec id '63'
142m 23.58s: warning: stream tag DX50/0x30355844 incompatible with output codec id '63'
193m 05.49s:


------ finish mobile work ------

MediaInfo Output

General
Complete name : C:\Video Encoding\DVDFab\generic\Top Gear - The Challenges 4\Top Gear - The Challenges 4.avi
Format : AVI
Format/Info : Audio Video Interleave
Format profile : OpenDML
File size : 3.27 GiB
Duration : 2h 31mn
Overall bit rate : 3 080 Kbps
Writing application : Lavf52.78.4

Video
ID : 0
Format : MPEG-4 Visual
Format profile : Advanced Simple@L5
Format settings, BVOP : Yes
Format settings, QPel : No
Format settings, GMC : No warppoints
Format settings, Matrix : Default (H.263)
Muxing mode : Packed bitstream
Codec ID : DX50
Codec ID/Hint : DivX 5
Duration : 2h 31mn
Bit rate : 2 748 Kbps
Width : 720 pixels
Height : 400 pixels
Display aspect ratio : 16:9
Frame rate : 25.000 fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.382
Stream size : 2.92 GiB (89%)
Writing library : XviD 1.2.1 (UTC 2008-12-04)

Audio
ID : 1
Format : MPEG Audio
Format version : Version 1
Format profile : Layer 3
Mode : Joint stereo
Codec ID : 55
Codec ID/Hint : MP3
Duration : 2h 31mn
Bit rate mode : Constant
Bit rate : 320 Kbps
Channel(s) : 2 channels
Sampling rate : 48.0 KHz
Stream size : 348 MiB (10%)
Alignment : Aligned on interleaves
Interleave, duration : 24 ms (0.60 video frame)
Interleave, preload duration : 24 ms
Writing library : LAME3.98.4


A Couple things I have noticed:

1. If I double click the file nothing happens
2. If I try to open it from within WMP12 I can force it to play i.e. it doesn't want to open it but you can say "open anyway", it takes while but it eventually will play it.


With every version between 6.2.1.8 and 8.0.3.2 everything works as normal, meaning - full file properties, open with double click no force necessary.

Attached below are screenshots of the following:

1. A Thumbnail of an 8.0.2.2 divx avi showing its thumbnail - Everything is as normal with this file.
2. A Thumbnail of an 8.0.3.2 divx avi that is unable to generate a thumnail

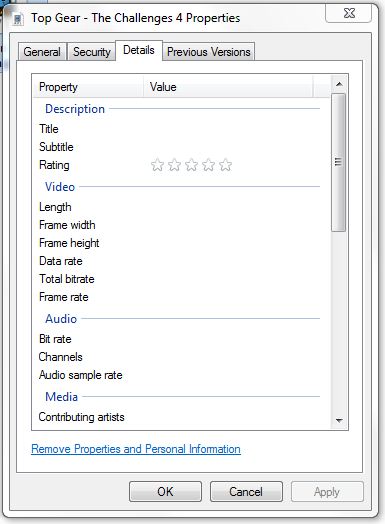

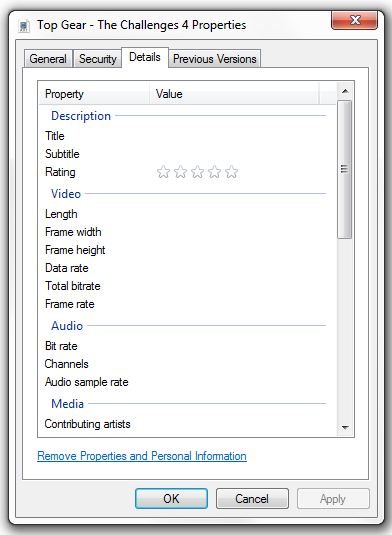

3&4. Blank File Properties of the file without thumbnail

You can see the file properties of my working 8.0.2.2 file in my post before this one


Please let me know if you need any more info.

[Rubber_-_Duck]

Is there any other info that you need?

[Rubber_-_Duck]

Any other ideas???

[strawfish]

My converted xvid/divx files don't display video too. Only the audio stream is played without the video.

[Rubber_-_Duck]

Ok...well at least we're not alone.

Hopefully it will be addressed in the next version.

[Rubber_-_Duck]

This still hasn't been resolved in 8.0.4.0

Still getting same outcome.

Here is my latest dvdfab_internal.log entry

DVDFab 8.0.4.0 (2010/11/12 09:32:30)

0m 00.73s: option dvd2dvd 1 dvd2mobile 1 bluray2bluray 1 bd2mobile 1 file2mobile 1 filemover 1
0m 28.92s: pathplayer enabled
2m 38.59s:


------ begin mobile work(1/1) ------


2m 38.59s: create config(0)
2m 38.59s: convert profile(generic.default)
2m 38.60s: dvd title(1) angle(0) chapter(1->9)
2m 38.60s: stream(480,2,1) stream(128,86019,1) stream(32,94208,4)
3m 01.35s: subpicture preset(1), mode(0)
3m 05.39s: subpicture(32) mode(0)
3m 05.39s: connect to sub render filter
34m 23.40s: subpicture(32) mode(0)
34m 23.40s: connect to sub render filter
34m 25.45s: warning: stream tag DX50/0x30355844 incompatible with output codec id '63'
88m 09.18s:


------ finish mobile work ------

[Rubber_-_Duck]

When using - generic.avi.divx.mp3 i get this warning in the log
warning: stream tag DX50/0x30355844 incompatible with output codec id '63'

When using - generic.avi.xvid.mp3 i get this warning
warning: stream tag XVID/0x44495658 incompatible with output codec id '63'

So does anyone know what "incompatible with output codec id '63'" means?

when I get these warnings it seems to be when the video file does not get finalized correctly.

[Rubber_-_Duck]

8.0.4.0 Single Pass Fails too

Internal Log:

------ begin mobile work(1/1) ------


9m 57.71s: create config(0)
9m 57.71s: convert profile(generic.avi.divx.mp3)
9m 57.71s: dvd title(1) angle(0) chapter(1->9)
9m 57.71s: stream(480,2,1) stream(128,86019,1)
10m 05.78s: warning: stream tag DX50/0x30355844 incompatible with output codec id '63'
63m 22.21s:


------ finish mobile work ------

Media Info

General
Complete name : C:\Video Encoding\DVDFab\generic\Top Gear - The Challenges 4\Top Gear - The Challenges 4.avi
Format : AVI
Format/Info : Audio Video Interleave
Format profile : OpenDML
File size : 3.27 GiB
Duration : 2h 31mn
Overall bit rate : 3 081 Kbps
Writing application : Lavf52.78.4

Video
ID : 0
Format : MPEG-4 Visual
Format profile : Advanced Simple@L5
Format settings, BVOP : Yes
Format settings, QPel : No
Format settings, GMC : No warppoints
Format settings, Matrix : Default (H.263)
Muxing mode : Packed bitstream
Codec ID : DX50
Codec ID/Hint : DivX 5
Duration : 2h 31mn
Bit rate : 2 749 Kbps
Width : 720 pixels
Height : 406 pixels
Display aspect ratio : 16:9
Frame rate : 25.000 fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.376
Stream size : 2.92 GiB (89%)
Writing library : XviD 1.2.1 (UTC 2008-12-04)

Audio
ID : 1
Format : MPEG Audio
Format version : Version 1
Format profile : Layer 3
Mode : Joint stereo
Codec ID : 55
Codec ID/Hint : MP3
Duration : 2h 31mn
Bit rate mode : Constant
Bit rate : 320 Kbps
Channel(s) : 2 channels
Sampling rate : 48.0 KHz
Stream size : 348 MiB (10%)
Alignment : Aligned on interleaves
Interleave, duration : 24 ms (0.60 video frame)
Interleave, preload duration : 24 ms
Writing library : LAME3.98.4

[90312]

I use DivX often for the PS3 and haven’t noticed this issue since the revision signals mentioned. I usually use audiocopy so I tried Jonah Hex DivX with mp3 audio just now to see if I could reproduce this issue and it plays fine. One thing I do that might be different is rip the main movie only to the desktop , burn a back up from there and then make my mobile copy from the rip, I never rip to mobile from the disc.

Forgot to mention The version I'm using 8.0.4.0

[Rubber_-_Duck]

I use DivX often for the PS3 and haven’t noticed this issue since the revision signals mentioned. I usually use audiocopy so I tried Jonah Hex DivX with mp3 audio just now to see if I could reproduce this issue and it plays fine. One thing I do that might be different is rip the main movie only to the desktop , burn a back up from there and then make my mobile copy from the rip, I never rip to mobile from the disc.

Forgot to mention The version I'm using 8.0.4.0

If possible could you also just check a couple other things for me?

1. Does your fresh rip contain all of its file properties or are they empty (right click - then in you details tab)

2. Does you new file display a thumbnail preview?

Examples of what I'm currently getting are found in posts 5 & 6 of this thread:
Post 5 -
Post 6 -

thanks for your help

Edit - I only use DVD rips on my HDD too

Also do you get any instances of - warning: stream tag DX50/0x30355844 incompatible with output codec id '63' in your log?
