Encodeing H265 UHD COPY With Cuda

prologic

Hello .. today I splashed out , big bucks on a EVGA GEFORCE GTX 1070

The problem is , even though all encoding is set to cuda .. it still wants to do it over 30 hours ..
I tried cuda on a different software , for normal 1080p video , and it was very fast .. so i know the card is ok ..

I am trying the latest version 10.0.6.4

System
Processor: Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz 3.40 GHz (overclocked) 4.4
Installed memory (RAM): 16.0 GB
System type: 64-bit Operating System, x64-based processor

is there something I may have missed ..
Another guy on another forum , is up and running ok ...

Thank you

october262

does your graphics card have the latest driver update ??

signals

prologic,
Please attach the fabcheck log and the DVDFab internal log.

prologic

prologic,
Please attach the fabcheck log and the DVDFab internal log.
signals

Here they are , also the driver is the newest .. thank you

signals

Congrats on the 1070, you have made a good choice. It is what is used in the DVDFab developer testbed, so we can know it plays nice with DVDfab v10.0.6.4 x64 and the new UHD Copy and UHD Ripper features.

The fabcheck log shows DVDFab found your new 1070 OK, but the DVDFab internal log is a mess, I've never seen one with those types of errors. The developers will probably need to look at it, but in the meantime you might try a fresh download and an "As Admiinistrator" reinstall of v10.0.6.4.

Wilson.Wang

Hi,

It should be finished in 0.5~1 hour with your GTX 1070.

We will check it ASAP, thanks!

Wilson

prologic

[ATTACH]n343708[/ATTACH] [ATTACH]n343709[/ATTACH]

Hi,

It should be finished in 0.5~1 hour with your GTX 1070.

We will check it ASAP, thanks!

Wilson
Wilson.Wang

Yesterday , I tried a movie ..the 5th Element .. it said it will take 12 hours ,/ so i ran it .. today i tried the finished product ..
The picture was distorted all the way through ... It even had the DVDfab logo on the corner of the screen , and my software is Registered and paid for ..
Every time I try the software , I have to register it every time ..

I am on windows 10 pro ..
emclosed is a screen shot and latest logs .

prologic

[ATTACH]n343708[/ATTACH] [ATTACH]n343709[/ATTACH]

Yesterday , I tried a movie ..the 5th Element .. it said it will take 12 hours ,/ so i ran it .. today i tried the finished product ..
The picture was distorted all the way through ... It even had the DVDfab logo on the corner of the screen , and my software is Registered and paid for ..
Every time I try the software , I have to register it every time ..

I am on windows 10 pro ..
emclosed is a screen shot and latest logs .
prologic

I installed a fresh copy of windows 7 on a spare drive , nothing on it exept dvdfab ..
started to encode ... and still everything the same .. 18 hours for the same movie ..
can`t really do anything else now ..
the card is a evga geforce gtx 1070
with the latest drivers
tested on windows 7 64 bit 2 versions 1 virgin and windows 10 pro
power supply 1200 watt

thank you

hers the log files , for new virgin windows 7 build 64 bit

Wilson.Wang

Hi,

Thanks for your feedback, we will check it ASAP.

Wilson

Chameleon

Hi,

Thanks for your feedback, we will check it ASAP.

Wilson
Wilson.Wang

I have a 1080GTX and I am experiencing the same issue. Thanks Wilson. You guys are great.

Wilson.Wang

hi prologic and Chameleon,
We tested on win10 64 bit pro with several videocard gtx1050/gtx1060 and not reproduce this issue.
There are some steps maybe helpful for find the problem.

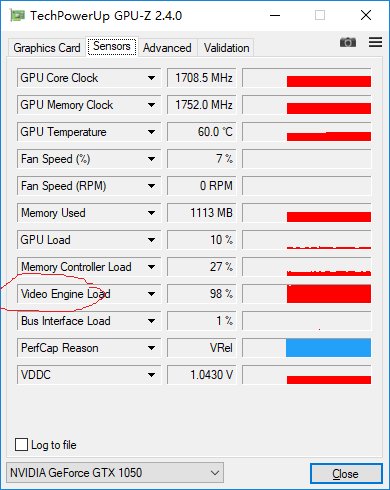

1. Download new GPU-Z
Run DVDFab UHD Copy, after DVDFab run stable, say 3%. Run GPU-Z switch to Sensors, check "Video Engin Load " part, it should show above 95%.
[ATTACH=JSON]{"data-align":"none","data-size":"full","data-tempid":"temp_17851_1509504531844_467"}[/ATTACH]
2. If not , check if hard drive run at high level.
If use nas souce, try direct copy it, see if seed is good above 80MB/s.
Make sure videocard is in the right PCI-E slot. GPU-z , Graphics Card, Bus Interface show PCIe x16 3.0
3. If HDD/SDD speed and web are good. Please reinstall nvidia driver, and select clean install mode.

If the problem still there, please send us your GPU-Z snapshot, and cpu-z dump info.

prologic

hi prologic and Chameleon,
We tested on win10 64 bit pro with several videocard gtx1050/gtx1060 and not reproduce this issue.
There are some steps maybe helpful for find the problem.
1. Download new GPU-Z
Run DVDFab UHD Copy, after DVDFab run stable, say 3%. Run GPU-Z switch to Sensors, check "Video Engin Load " part, it should show above 95%.
[ATTACH=JSON]{"data-align":"none","data-size":"full","data-tempid":"temp_17851_1509504531844_467"}[/ATTACH]
2. If not , check if hard drive run at high level.
If use nas souce, try direct copy it, see if seed is good above 80MB/s.
Make sure videocard is in the right PCI-E slot. GPU-z , Graphics Card, Bus Interface show PCIe x16 3.0
3. If HDD/SDD speed and web are good. Please reinstall nvidia driver, and select clean install mode.

If the problem still there, please send us your GPU-Z snapshot, and cpu-z dump info.
Wilson.Wang

Prologic here ..
tested the above

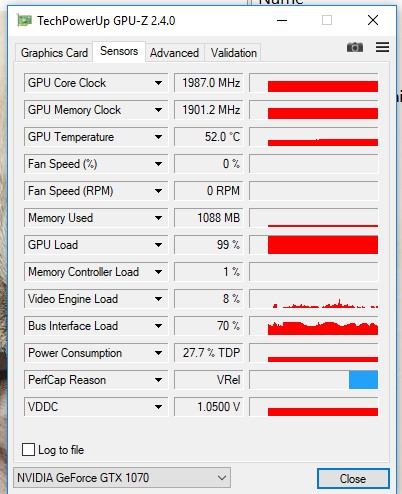

enclosed is screen shot with GPU -z ..which going off your picture is way out !!
also the hard drives are very fast enough , tried send it to and ssd card .. for a change ..
Cant understand , the bit about installing a fresh driver ... tried this program on 3 builds and one was just to test this program and nothing else ..

logs sent

Thank you

Wilson.Wang

hi prologic,

Your GPU-Z show "GPU Load" 99%, that's the bottleneck.
Could your check if not run DVDFab, this "GPU Load " is normal? If not play game it shold be less than 10%.

If "GPU Load " still high, please try some old dirver.
fabcheck log show i7-2600K CPU is using, Maybe check the motherboard BIOS update.

Wilson

prologic

hi prologic,

Your GPU-Z show "GPU Load" 99%, that's the bottleneck.
Could your check if not run DVDFab, this "GPU Load " is normal? If not play game it shold be less than 10%.

If "GPU Load " still high, please try some old dirver.
fabcheck log show i7-2600K CPU is using, Maybe check the motherboard BIOS update.

Wilson
Wilson.Wang

Hello
I tried cuda on an older version of dvdfab and Anydvd clonebd and cuda worked fine at high speed .. the dvdfab was the better quality of the 2 , but I cant recode custom size ...
I have not played a game , since the Amiga days !! .....
I will try an older driver if i can find one ..

Thank you

Wilson.Wang

hi prologic,

Please tell us which version of dvdfab cuda worked fine with the gtx1070, like 10.0.6.4.

And Please dump CPU-Z info,

Wilson

prologic

hi prologic,

Please tell us which version of dvdfab cuda worked fine with the gtx1070, like 10.0.6.4.

And Please dump CPU-Z info,

Wilson
Wilson.Wang

OK ..
I tried dvdfab 9.2.3.7
worked like a charm ..
converting 25gig movie to dvd9 ..
wish i could enter my own encode bitrate .. as I do a lot of 2 movies to 25 gig at about 11 gig each ..this would be invaluable ... anydvd`s clonebd is rubbish with cuda ..
Anyway heres my logs and screens shots , a lot different ..also i set the driver , to an old nvidea ..but works with this dvdfab no matter what version ..

prologic

OK ..
I tried dvdfab 9.2.3.7
worked like a charm ..
converting 25gig movie to dvd9 ..
wish i could enter my own encode bitrate .. as I do a lot of 2 movies to 25 gig at about 11 gig each ..this would be invaluable ... anydvd`s clonebd is rubbish with cuda ..
Anyway heres my logs and screens shots , a lot different ..also i set the driver , to an old nvidea ..but works with this dvdfab no matter what version ..

prologic

Hurray .. I seem to be having luck .. did my first movie , around 1:35 mins and doing my second now
I updated my bios , but that did not help ...
I WENT IN TO BIOS and change pcle 2.0 slot to x4
am wondering also if my card is in the right slot ..
I have a P8P67 PRO ASUS MUTHERBOARD .. and am using the very bottom socket ..
I found a photo on google , of my mainboard , and they had their card in the top slot .. so i tried that ..and my expensive monitor would not work after ..
was gutted .. no power to monitor ..
I put the card back ... in the same place as before , and was lucky the monitor came back on after a rest ..
So i still dont know for sure .. but the main thing is .. its working ..
The video engine load is variable .. which may be better than full throttle .. even if it took 5 hours , that would be ok for me .. but days is silly ?

one thing .. my first attempt had the dvdfab logo in the left hand screen for a while, and this program is registered ?

I enclose some screen shots

Thanks for being patient ..

looking for a new mutherboard and processor in the new year ..

Wilson.Wang

hi prologic,

Glad to know, the speed is OK.
The top slot near cpu usually is the fastest one. PCIe speed is important.
If registered, dvdfab log should not show.

Wilson

prologic

hi prologic,

Glad to know, the speed is OK.
The top slot near cpu usually is the fastest one. PCIe speed is important.
If registered, dvdfab log should not show.

Wilson
Wilson.Wang

Upto full speed now , using top slot ..first time i tried ..monitor had a fit .. anyway .. only problem i have now.. is am still getting the dvdfab logo , at the top left hand corner , for the first min ..
I have sucsessfully logged in, with name and password as well ... also uninstalled any previous version and done a registry clean as well ..

Thank you .

h1jfg

Hi Wilson,
I am using GTX1060 and it re-encodes a 4K UHD in about 35-45 minutes.
The GTX1060 only has 1x NVENC engine, but I believe the GTX1080 has 2x NVENC engines.
On your GTX1080 test rig does DVDFab use both NVENC engines? ANd if so does it encode twice as fast as a GTX1060?

I am thinking about an upgrade to the new GTX 1070Ti but cannot find any information about whether it has 1x or 2x NVENC engines and whether or not both are enabled (e.g. The original GTX1070 had 2x engines but one was disabled).

Thank you.
